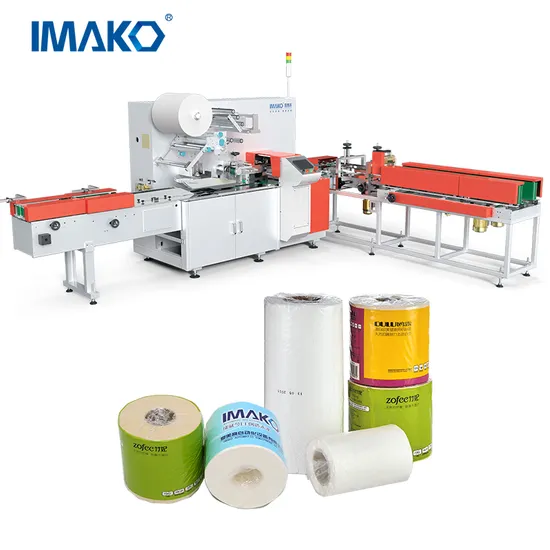

Automatic Kitchen Roll Toilet Paper Wrapping Equipment

Product Description

Product Description Scope of application: Toilet Roll/Kitchen Roll/Towel Roll.
A. It automatically achieve processes from feeding, packing to side sealing. So that it prevents the second pollution from hand operation.
B. Four servo control system making packing processes precise and stable.
C. Large PLC human-machine interface is easy for operation.
D. The transmission system mainly is made up of synchronous belt wheels and chains, which is easy for maintain.

Max. Work Speed:	200Pack/min
Total Power:	12KW
Pack Range(mm):	Length (L): 80-220 Diameter (D): 80-130

Special functions:
A. Prevent air pack function saves waste and reduce cost. If there are no rolls, main machine automatically stops; When rolls come in, toilet paper machine automatically runs. Thus you can save packing material and cut down production cost.
B. Prevent cutting rolls function. Machine has self-detection system. If rolls are misplace, toilet paper machine automatically stops so that knives cann't cut them. Thus you save rolls paper and reduce cost.
C. Electric self-adjust cutting knife speed function. You don't need to adjust speed by your hand. It's very safe and conveinent.
D. The toilet paper machine is both for cored rolls paper and non-cored rolls paper.
E. This machine stably packing rolls at 180 packs per minute in production field.
Features: * Fast Speed (Up To 200PPM) * Cost Effective * Certificate: CE * Wide Size Range, Quick Sizes Changing * High Accuracy(+/-0.01mm) * Complete Operation Configuration * Easy to Use * Low Maintenance
Product Parameters

TP-R220 toilet paper machine main parameter configuration
Design packing speed	220packs/min
Stable packing speed	≤200 pack/min	relate to product size
Maximum flm width(mm)	430
Cutter configuration	Double cutters
Film install structure	Air shaft
Machine weight(KG)	1800
Machine noise(db)	≤78dB
Percentage of pass	≥97%
Efficiency	≥85%
Power supply	380V/60Hz
Packaging film material	BOPP,Spp
Film thickness	0.018-0.03

Application
Company Profile Started in 2011, the founder, Mr. Huang Wei, tried to make his idea a reality, then IMAKO was founded. In 2012, IMAKO designed and launched TP-R200 5 servo drive control 200 roll /min high-speed toilet roll paper automatic packaging machine (at that time the domestic peer equipment is mostly 100 roll /min) and TP-T80 3 servo drive control 80 pack /min facial tissue automatic packaging machine (at that time the domestic peer equipment is mostly 50 pack /min, now our machine could run in 200pack/min ).
Since IMAKO launched the first Kleenex packaging machine, the production level of our machine continues to break through. From facial tissue to toilet rolls, napkins, hand towel, handkerchiefs, kitchen paper,from single wrapping to bag packing, box packing, palletizing, conveying equipment,We are constantly breaking through and innovating.
IMAKO's packing solution have been favored by customers in more than 10 countries such as the United States, Mexico, Brazil, Egypt, Colombia, Indonesia, Philippines, Malaysia, Vietnam, Pakistan, Iran, Palestine, Qatar, Lebanon, Turkey, UAE, Israel, Ghana, Kenya, Nigeria and so on. IMAKO has become one of the core suppliers of household paper packaging equipment for SOFTEX, Asia Paper & Pulp Co., Ltd.(APP) and Unicharm.
We do not just want to make money, our existence value is to solve problems, use our creativity to help customers build competitive advantages, provide customers with efficient solutions, with wisdom and technology to create a better world.
Welcome to join us or cooperate with us.
IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country.
FAQ

Q 1. Where is your factory located?

A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

Q 2. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q 3: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q 4:How could i contact you if any problem there?

A: Send us email or leave us message, we will contact you as soon as possible.
