1. Product Features:

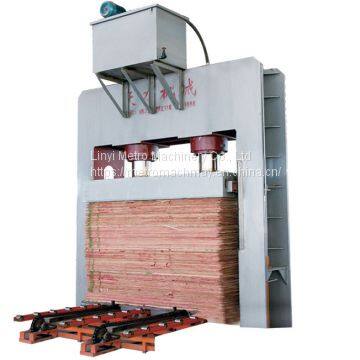

Cold press machine is the auxiliary in plywood production line, which is used to shorten the cycle time of hot press and improve the quality of plywood before gluing board. Cold press machine belongs to the pressing machine. Cold press machine is mainly used to press the gluing veneer, so that make the initial shape, and then into the hot press machine to press. It is important to improve the quality of plywood, and it is an significant part. Cold press machine in general consists with the rack, fixed beam, moving beam, the plate device, cylinder and hydraulic system, electric control device components.
Advantages of our pre-press equipment:
1.Easy to operate, reasonable design, stable performance
2.fast and efficient pressing.
3.Emergency safety braking.
2. Technical Specification:
| Model | BY814X8/5-I |
| Norminal Gross Pressure | 5000KN |
| Direction of feeding plate | Horizontal |
| Max opening | 1200mm |
| Diameter of cylinder | 360mm(Wuxi) |
| Numbers of cylinder | 2pcs |
| Side helpful cylinder | 63mmX2 |
| Pressurization | ≤25MPA |
| Stroke of cylinder | 1000mm |
| Position of cylinder | Upside |
| Pressure of unit plate blank | 15kgf/cm2 |
| Dimensions of the board | 2560X1280mm |
| Allowed pressure | ≤25MPA |
| Net weight | 19000kg |
| Overall dimensions | About 3600X1380X3750mm |
| Control method | Automatic pumping station |
| Thickness of upper and lower crossbeams | 900mm |
| Thickness of steel plate | 40mm |
| Thickness of acctive crossbeam | 22mm |
| Thickness of steel plate | optioned |
| With chains tranport device |
|
3. More Pictures:
