US$38,000.00-65,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Item
CNC Deep Hole Drilling Machine
Workbench Size
L1800mm X W1150mm
Max. Drilling Depth
1600mm
Drill Hole Inner Diameter
Dia.2.5~38mm
Spindle Specifications
Oz25
X-Axis Displacement
1600mm
Y-Axis Displacement
1100mm
Z-Axis Displacement
1600mm
Transport Package
Standard Exporting Package
Specification
L4800xW3800xH2800mm
Production Capacity
500 Sets/ Year
Product Description

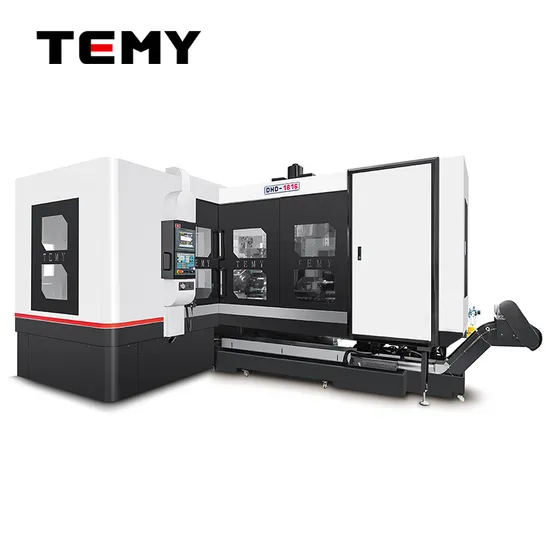

Horizontal deep hole drilling machine
Model: DHD 1816
It is a horizontal deep hole drilling machine for drilling deep hole. Its structure is horizontal, and the workpiece is placed horizontally during processing. It is mainly used for drilling holes with relatively large depth and diameter ratio on various materials (such as metal materials), such as the inner hole processing of gun barrels, barrels, hydraulic cylinders, etc.
Compared with ordinary drilling machines, it can better ensure accuracy and straightness when processing deep holes, and can effectively solve the problems of chip removal and cooling lubrication, so that the processing process is smoother and more efficient.
| ITEM | UNIT | DHD-1816 |
| Machining capacity | | |
| Drill hole inner diameter | mm | Φ2.5~Φ38 |
| Max. drilling depth | mm | 1600 |
| Machining stroke | | |
| X-axis displacement | mm | 1600 |
| Y-axis displacement | mm | 1100 |
| Z-axis displacement | mm | 1600 |
| Workbench | | |
| Size (L × W) | mm | 1800*1150 |
| Max. Loading capacity | kg | 13000 |
| Speed and Main Spindle | | |
| Spindle taper hole | | OZ50 |
| Max. spindle speed | rpm/min | 6000 |
| Feed rate | mm/min | 1~300 |
| System | | |
| Control system | | SYNTEC(Standard) FANUC/Siemens/Mitsubishi/LNC/GSK(optional) |
| Power | | |
| Spindle motor power | KW | 11/ 15 |
| X-axis servo motor power | KW | 5.9 |
| Y-axis servo motor power | KW | 5.9 |
| Z-axis servo motor power | KW | 3.1 |
| Total power | KW | 38 |
| /Cooling System | | |
| Cooling tank capacity | L | 800 |
| Coolant pressure range | MPa | 21 |
| Coolant flow range | L/min | 6~80 |
| Chip conveyer system | | |
| Chip conveyor | | Magnetic chip conveyor(Standard) / Chain or spring type(optional) |
| Size & Weigh | | |
| Machine weight | kg | 13000 |
| Machine size (L × W×H) | mm | 5500×4000×2800 |
>>
