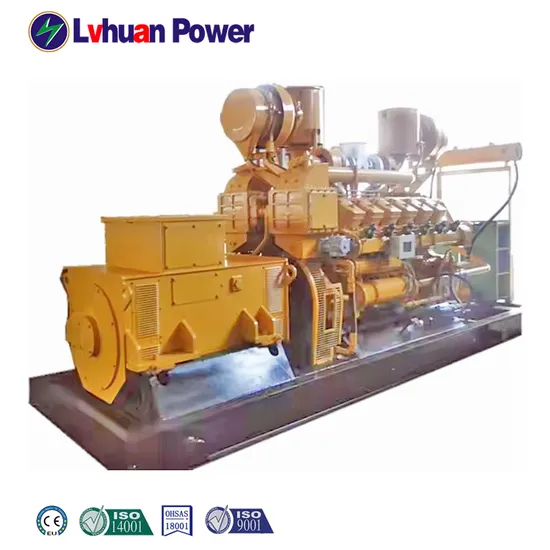

Cogeneration 500kw - 2MW LNG CNG Methane Gas Biogas Natural Gas Generator

Product Description

Cogeneration 500kw - 2mw LNG CNG methane gas biogas natural gas generator
Product Description:
1. +10 years gas engine manufacturer.
2. Wide power range: 500kw - 2mw LNG CNG methane gas biogas natural gas generator, single or parallel running.
3. Multi-option of engine, alternator, control system and cooling system, PLC control panel.
4. Long continuous running hours, 8000 hours per year.
5. CE & ISO approved
6. OEM provided
Main spare parts:
1. Control system: America Woodward control system
2. Controller: ComAp, Deepsea, Woodward
3. Ignition system: American ALTRONIC, including:magneto, high-tension coil
4. Starting system: DC 24V electric motor.
5. Mixer: IMPCO
6. Spark plug: STITT
Main technical parameters for cogeneration 500kw - 2mw LNG CNG methane gas biogas natural gas generator:

Parameter of natural gas generator
Model Number	LHNG500-2000
Brand Name	LVHUAN
Prime power	500kw - 2mw
Rated Speed	1000/1200rpm
Rated Frequency	50/60Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤9.8mj/kw.h
Lubricant consumption	≤1.0g/kw.h
Engine Capacity	71.45 L
Cylinder Number	12
Cylinder Bore	190mm
Stroke	210mm
Starting System	DC 24V electric motor
Cooling method	Water cooler
Lubricant method	Passive and flying lubricant
Isolation class	H
Protection	IP23
Alternator	Siemens, Standford, Leroy Somer, Marathon, etc.
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001:2008, CE
Warranty	1 year
Type	Open
Control system	Automatic alarm system
Size	6200x2100x2800mm
Weight	12500kg

Specs. of biogas engine

Engine	G12V190ZLDT-2
Engine type	Four stroke, direct injection, water-cooling
Gas mixing type	Outside
Starting mode	24V electric motor

The worksite needs to meet following basic requirements:
a) Ambient temperature between -40ºC~40ºC;
b) Relative humidity less than 95%(35ºC);
c) Site elevation not higher than 2500m;
d) For outdoor installation, simple rain shelter is required.
Gas requirements of cogeneration 500kw - 2mw LNG CNG methane gas biogas natural gas generator
1. Temperature of biogas≤ 40º C
3. CH4 content of biogas≥ 40%, variation rate≤ 2%/min.
4. H2S≤ 200mg/Nm3
5. NH3≤ 20mg/Nm3
6. Impurities particle size≤ 5μ M, impurity content≤ 30mg/Nm3
7. Moisture Content of biogas ≤ 40g/Nm3
Purification of biogas has a significant impact on machine life and continuous running time!
Our Services: 1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.

2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.

3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We provide one year guarantee period and lifetime service.
Plentiful spare part supply for biogas generator natural gas generator:
1. We have spart parts department, plentiful spare part supply for all genset model will guarantee genset lifetime running.
2. All parts were from original factories or professional factories,complete in specification, keep good quality.


FAQ 1. Are you factory? and where is your factory?
Yes, we are. Our factory is located in Zhangqiu Longshan subdistrict, Jinan city, Shandong province, Welcome to visit our factory.
2. How to choose the right model?
To choose a right model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.). For biomass power plant and coal gas power plant, some clients may doesn't have gasification system, then we need information about raw material.

3. What's the genset warranty?
The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.

4. How to do the maintenance?
Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.

5. Will be operation training offered?
Yes, operator training would be conducted by our technicians during the process of commissioning or factory training course in China.

6. What's about the installation and commissioning?
Installation and commissioning of the genset would be instructed assisted by our technicians on site.
7. What is your regular delivery time?
30 days after order releasing.
Welcome to ask for question and quoation!
My mobile: 86-15615646311

---
