Horizonta Boring and Milling Machine for Drilling, Reaming, Boring, Plane Milling, Slot Milling, Tapping

Product Description

Features: 1. This series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and non-ferrous workpieces. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes. The facing plate slide can be fed radially, which enables the machine to bore large size holes, turning outside diameters, and grooving. This series of machine can be used in the industries of energy, metallurgy, mining, machinery etc.
2. The spindle has 3 supporting points and good rigidity. Nitrogen treatment is employed on the main surface, which enables the spindle to have high hardness and long service life.
3. The spindle and feed speed change adopt manual rotary valve in the headstock and hydraulic pre-selection, which is convenient for operation.
4. The motion distribution and clamping of headstock vertical travel, worktable longitudinal and transverse travel and rotary motion all adopt automatic control and centralized operation, which result in the saving of time and effort, also making the machine convenient and reliable to use.

5. The worktable is equipped with 4x90° optical positioning device, which assures high accuracy.

Specification	Unit	TPX-110B	TPX-110C	TPX-110D	TPX-130B	TPX-130C
Spindle
Spindle diameter	mm	110	110	110	130	130
Spindle taper	-	MT6	MT6	MT6	Metric 80	Metric 80
Max. spindle torque	N.m	1225	1225	1225	3136	3136
Max. spindle thrust	N	12250	12250	12250	31360	31360
Spindle speed steps	-	22	22	22	24	24
Spindle speed range	rpm	8-1000	8-1000	8-1000	4-800	4-800
Main motor power	-	7.5	7.5	7.5	15	15
Facing head
Max. facing head torque	N.m	1960	1960	1960	4900	4900
Facing head diameter	mm	600	600	600	750	750
Facing head speed range	rpm	4-200	4-200	4-200	2.5-125	2.5-125
Facing head speed steps	-	18	18	18	18	18
Table
Table size	mm	1100x960	1100x960	1100x960	1600x1400	1800x1600
Max. loading capacity on table	kg	5000	5000	5000	8000	10000
T-slot size	mm	22	22	22	28	28
T-slot count	-	7	7	7	9	11
Working range
X-axis travel	mm	900	1250	1600	1600	2000
Y-axis travel	mm	900	900	1200	1400	1800
Z-axis travel	mm	1400	1400	1400	2000	2000
W-axis travel (spindle)	mm	600	600	600	900	900
U-axis travel (facing slide travel)	mm	180	180	180	250	250
B-axis travel (table)	°	360° (4x90°)	360° (4x90°)	360° (4x90°)	360° (4x90°)	360° (4x90°)
Distance between spindle center and worktable	mm	0-900	0-900	0-900	0-900	0-900
Feed range
Rapid feed range (X/Y/Z/W)	mm/min	2500	2500	2500	2500	2500
Range of axes speed/spindle revolution (X/Y/Z/W)	mm/rev	0.04-6/0.01-1.88	0.04-6/0.01-1.88	0.04-6/0.01-1.88	0.05-8/0.01-2	0.05-8/0.01-2
Accurancy
Measurement reading accuracy (X/Y/Z)	mm	0.005	0.005	0.005	0.005	0.005
Measurement reading accuracy (B-axis)	°	0.001°	0.001°	0.001°	0.001°	0.001°
Others
Overall dimensions (LxWxH)	mm	4910x2454x2750	4910x2870x2750	5028x3359x3079	6995x3647x3442	7030x4665x3800
Machine weight	kg	11500	13000	14000	24000	28000

- MT6 spindle (110 mm) - Metric 80 spindle (130 mm) - Facing plate - Boring tool holder - Work lamp - Cooling system - Hydraulic system - Lubrication pump - NEWALL X/Y-axis DRO - MITSUBISHI PLC control - CE-mark electrical components - Level wedges & foundation bolts - Operating tools - Operation manual

- ISO (7:24) spindle - NEWALL Z-axis DRO - Rear column - Turning device & gears

Bed Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.
Control Panel Available in hanging or swing-arm arrangements, the control panel is easy to use and reduces operator fatigue.

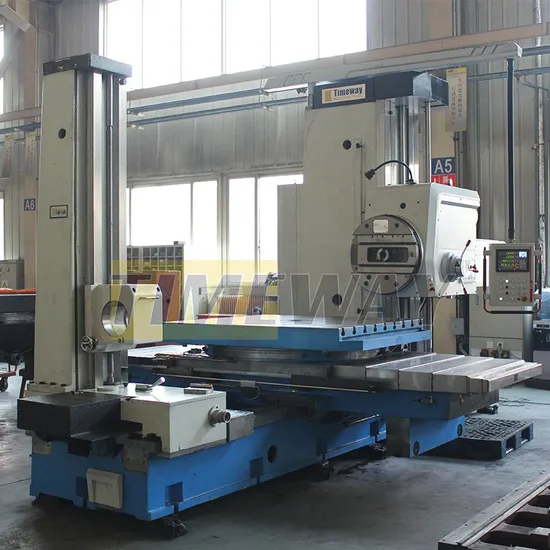

Table Table rotates 360°, 1100x960mm large table provides milling of workpiece weights of up to 5 tons.
Rear Column As an optional accessory, auxiliary support boring bar, boring large stroke deep holes and keep coaxiality.
Column
Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
Headstock
Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.
Spindle & Facing Plate
Facing plate and drill spindle with different task specific speed ranges according to the various functions.
Hydraulic System
Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.
