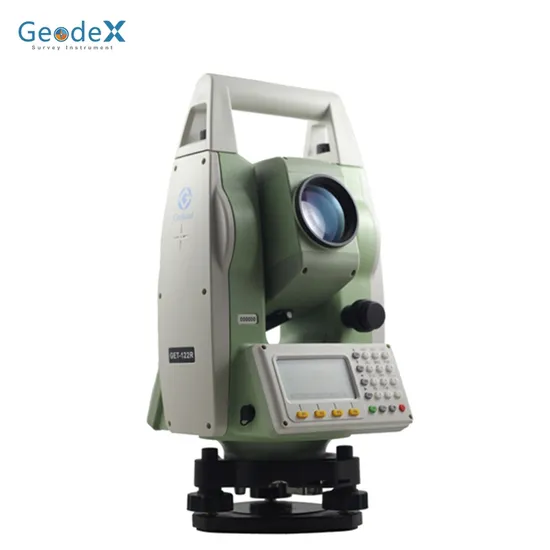

Multiple-Communication-Ways 800m Reflectorless Total Station Survey Equipment for Geodetic Surveying

Product Description

TECHNICAL SPECIFICATIONS

Model	GET-122CR8	GET-122CR6		GET-122CR
Telescope
Magnification / Resolving power	30× / 3.5″
Others	Objective aperture:45mm(1.8in.)(50mm(1.9in.) for EDM), Image:Erect,Field of view:1°30′,Minimum focus:1.5m
Angle Measurement
Measuring method	absolute encode
Minimum reading	1″
Detection method	Horizontal: Dual Vertical: Dual
Accuracy	2″
Distance Measurement:
Measuring Range	5km(prism);800m(reflectorless)
Accuracy	Reflectorless:±(5mm+3ppm·D) reflector:±(2mm+2ppm·D)
measuring time	Fine mode:<1S;Tracking mode:<0.6s
Displaly	Max:99999999.9999m Min:0.1mm
Unit	m/ft
Atmospheric correction	Auto correction ,manual input
Atmosphericrefraction and earth curvature correction	Auto correction ,manual input
prism constant correction	Auto correction ,manual input
Vial
Plate vial	30″/ 2mm
Circular vial	8′/2mm
Auto Vertical Compensator
Type	Dual axis liquid-electric(optional)
Compensation range	±3′
Accuracy	1″
Laser Plumment
Accuracy	±0.8mm/1.5m
laser class	II
Laser wavelength	650nm
Interface and Data management
Display/Keyboard/control paner location	Graphic LCD,192*96dots ,6 lines,digital,backlight/Alphanumeric keyboard with backlight/ On both face
Control paner location	on both face
Data storage-Internal memory	20000 points
Data storage-plug-in memory	SD card ,USB flash memory(max.16G)
GET-122CR Data Communication	RS-232C,SD CARD,USB,MINI USB, Bluetooth(optional)
GET-122R Data Communication	RS-233C
Power supply
type	Li-ion ,Rechargeable
Voltage	DC 7.4V 3000mah
Continuous operation time	16 hrs
General
Dust and water protection	IP54
Operating temperature	-20ºC to 50ºC
size and handle	220×184×360mm
Weight with battery & tribrach	5.5kg

Main Features
★ 2" Angular Accuracy
★ ±(2mm+2x10-6·D) with reflector
★ 800m of reflectorless measurement, higher work efficiency
★ Improved EDM System
★ Dual-axis Compensation Available, Laser Plummet for easy operation
★ Exquisite User Experience
★ Abundant Measurement Program Design for Surveying, Layout & Road Design
★ Big Inner & External Memory for large data storage
★ Convenient Data Communication via SD card, USB port, Data Cable & Bluetooth
★ High Value for Money, Quality but Affordable
Main programs
Usage Scenarios
FQA
Part 1) Company & Products
Q1:What are your advantages in providing the geographic surveying equipment to the world market ?
1. Work Team with 15 years experience in providing geographic surveying equipments
2. Excellent consultant service on International Logistics solution & Customs Affair
3. Professional technical support on instruments after-sale service
Q2:How can I get the products catalogue?
1. Customers can download the product catalog from our website
2. Contact us by sending an inquiry or leaving a message from the website.
Q3:Can I get products which is not available from your website?
If you don't find the product information on our website, you can contact our sales team by inquiry, and send a specific request, we will follow up and contact you immediately.
Q4:Do you support Customization Order for the surveying products?
Yes, for most products, we can provide OEM or ODM service. For more information, please contact our sales team via inquiry for further communication.
Q5:How can I get a Products Certificate &Company Certificate?
Some of our products have obtained SGS RoHS, CE, FCC, CCAC ISO and other test reports or certificates. For more requests, please contact us via inquiry or website
Part 2) Order & Shipment
Q6:How to place an order?
A. Contact the Geodex sales team via instant message on the inquiry
B. Send us your order list via the website for proforma invoicing
Q7: What transportation modes can I have the ordering items to be ship?
1. Door to door delivery service Air Express Courier like DHL, FedEx, UPS, TNT, as well as some local regional specialized courier
2. General Air flight Cargo Service from airport to airport, Consignee make the Customs Clearance by themselves
3. Ocean transportation by sea boat to the nearest port of the destination, customers make the Customs Clearance by themselves
4. International Multi-modal transport, by boat & truck, by flight & truck...
5. Customers can appoint their own forwarder agent who has warehouse in China, we can deliver the goods to shipping warehouse as your shipping instructions.
Q8: How to calculate the shipping cost?
The shipping freight rate is changing from time to time due to the oil price ups and downs, as well as the Epidemic control. Please contact our sales team for getting best shipping solution & freight rate.
Q9:How long will be the shipment days?
Most of the items are ready to ship.
If it is not available from current stocks, shall be within 15 days.
For bigger order quantity, it depends on the production orders.
Please enquire with our sales.
Q10:What kind payment methods do you accept?
1. We usually do T/T, L/C, Western Union, Money Gram, Master Credit Card
Q11: How can I make the Customs Clearance and pay tax for the purchasing goods?
1. ) Generally, if shipping by Air Express like DHL, FedEx, UPS, TNT, the courier company will provide Customs Clearance Service and door-to-door delivery service, however, customer still need to pay the import customs tax according to the local legal regulations.
2. ) Ship by General Air Flight Service or Ocean Boat, consignee needs to do the Customs Clearance and pay tax by themselves or can appoint an agent.
3. ) For some countries, we have some specialized shipping line which offer freight package can cover Customs Clearance Service and Import Tax.
4. ) Please contact our Sales for further information.
Q12: How can I track my shipping package?
1. ) We will provide Airway Bill, Bill of Lading for following up as soon as the goods is shipping out, customers can track the shipment transportation records from the shipping compay's website.
Part 3) Technical Support
Q13: How can I get technical support to operate the instruments?
A.) The instruments comes with Operation Manual (User Manual) either in hard copy or digital copy. Please check inside the package you received, or contact us by e-mail.
B.) If there is specific problem during using the device, you can get technical support by contacting us. We will provide Video, Documents of How to operate, and even on-line presentation.
Q14: How can you ensure the product quality and instrument performance?
A.) Firstly, we build a solid product strategy and standard at the factory production and examination.
B.) Secondly, we carry out a double-check system to make sure every instrument is well calibrated before shipment.
Q15: How long will be the warranty of the goods?
A.) For non-human factors fault, we provide 12-month warranty for instrument main unit, and 6 months for consumable items like batteries.
B.) And also provide long-term technical support and repair service.

---
