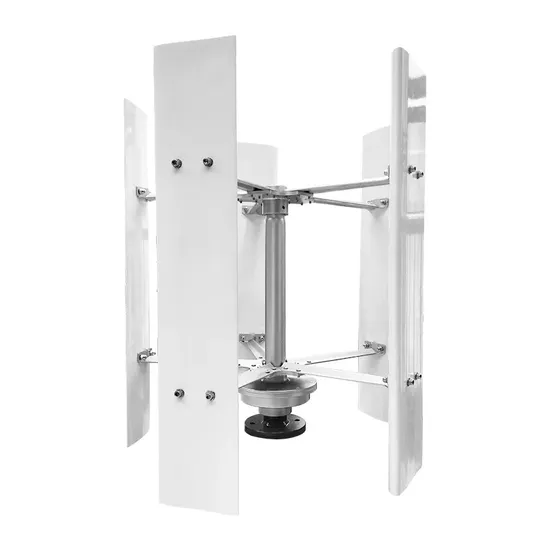

CE Approved Noiseless 30kw, 50kw, 100kw, 200kw, 300kw Vertical Wind Turbine 3 Phase 24V 48V Use for Home

Product Description

CE Approved Noiseless 30kw,50kw,100kw,200kw,300kw Vertical Wind Turbine 3 Phase 24V 48V Use for Home Product Features: 1.Security. Using vertical blades and triangular double-fulcrum,The problems of blade lose/broken or leaf flying-out have been well solved.
2.Noise. Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
3.Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strong wind.
4.Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
5.Power generation curve.The power generation increasing gently , it could produce 10% to 30% more power than other types of wind turbines.
6.Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
7.Brake device. The blade itself has speed protection, and can configure manual mechanical and electronic brake meantime.
8.Operation and maintenance. Without gear box and steering mechanism, the wind turbine only needs regula check every 6 months.

Rated power	3KW	5KW	10KW	15KW	20KW	30KW	50KW	100KW	200KW
Maximum power	3.2KW	5.5KW	11KW	16KW	22KW	32KW	52KW	110KW	220KW
Rated voltage	24v/48v/96v/120v/220v/380v/600v
Start the wind speed	2m/s
Operating wind speed	3.5m/s-13m/s
Safe wind speed	55m/s
Blade diameter(m)	1.67	2.1	2.63	2.87	3.15	4.25	5.78	8	9
Blade height(m)	2.2	3.2	4.2	4.5	5	6.8	10	18	25
Number of blades	3/5
Blade material	Nylon (PA6) fiber or Aluminum alloy
Fuselage material	Reinforced die-cast aluminum or Alloy steel
Magnetic steel material	NdFeB
Generator type	Three-phase AC permanent magnet synchronous generator
Control mode	Electromagnetic brakes
Wind direction adjustment	Automatic windward
Design life	25 years

---
