Automatic Rubber Compound Mixing Mill/Banbury Rubber Mixing Machine/Open 2 Rolls Mill with Stock Blender/Rubber Mixer

Product Description

rubber open mixing mill (XK-610)
Product Description
I. Feature
1. Roller adopt alloy chilled cast iron. Its surface is with high hardness and wearproof. Roller surface do mirror processing. Two rollers inner hollow spray type. Roller surface temperature uniformity.
2. Roller is ball bearing, grease lubrication structure.
3. Roller adopt device respectively adopt worm wheel, worm drive. It could optional install motorized nip adjustment,easy to operate.
4. This machine is whole base structure, convenient to install.
Product Parameters
II. Technical parameter

Item	XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660	XK-710
Roll diameter (mm)	160	250	360	400	450	550	560-510	660	710
Roll working length	320	620	900	1000	1200	1500	1530	2130	2200
Front roll linear speed (r/min)	9	16.3	16.7	19.3	21.8	22.5	27.2	28	31.9
Speed ratio of rolls	01: 01.4	01: 01.1	01: 01.3	01: 01.3	01: 01.3	01: 01.2	01: 01.2	01: 01.2	01: 01.5
Max roll space (mm)	4.5	8	10	10	12	16	15	0.5-15	0.5-15
Compound feeding capacity(kg)	1-2	10-15	20-25	18-35	50	50-65	50-65	165	190
Motor power(kw)	5.5	18.5	30	45	55	110	90	240	280
Dimensions(L× W× H)
L (mm)	1133	2722	4200	4920	5405	6646	6270	7280	8185
W (mm)	920	1115	1780	1780	1740	2736	2282	3400	3910
H (mm)	1394	1345	1760	1800	1790	2105	2000	2530	2270
Gross weight (T)	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49	~51

Detailed Photos

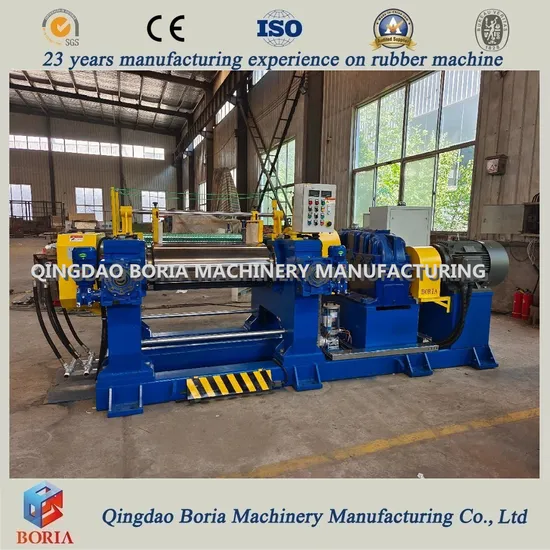

III. Picture for Reference
After Sales Service
IV. Our Services
1.Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
2.In the process of production, we will take photos and send to customers for their track the progress.
3.Test running: The above machines are all passed inspection of 3~5 hours of full load operation before leaving our factory. And we will take the video and send it to you for inspection. You can use it directly thus saving the time of test-run and expense. And we also warmly welcome to our factory to inspect and test running.
4.Warranty: 12 months after installation, if our machines have any problems, please feel free to contact me. We will solve it for you as soon as possible, and give you the best services.
5.Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
6.We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
7.We supply overseas engineer service and help to train your workers to operate the machine.
Packaging & Shipping
V. Packing
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Contact person: Alice (Sales Manager)
FAQ FAQ:
1. Q: Where is your factory? How can I visit ?
A: Our factory located in Qingdao city.You can fly to QINGDAO LIUTING airport,then we can pick you up to our factory for your visiting.We are looking forward to your visiting.
2. Q: How does your factory control the quality of machines and after sales service?
A: Our machines have passed CE, ISO, SGS certification, with best quality and reasonable price. All our machines have 1 year guarantee, will be provided for a lifetime maintenance.
3. What's your payment term?
A: Common is 30% deposit by T/T, the balance paid against shipping documents
Or L/C at sight.
4. Q: Can you design new product for us?
A: We have a professional development team that can make new products according to your requirements.
5. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.

6. What does your factory do regarding quality control?
We pay much more attention to the quality controlling from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.

7. What's the machine quality guarantee?
we provide one year warrenty for our machines. We choose the world's famous brand of components to keep our machine in perfect working condition.

8. Are you able to provide the installation and commissioning of machines overseas? How long will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.

9. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.

---
