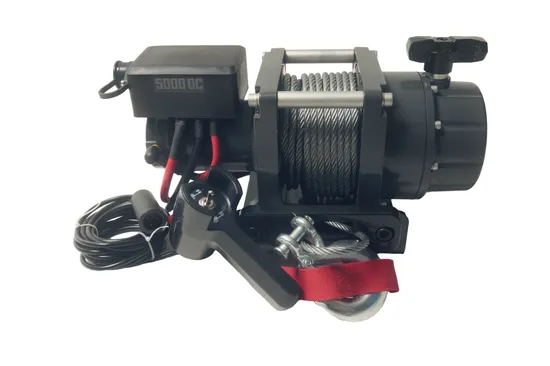

5000lbs. Load Capacity Electric Winch, 12V DC

Product Description

The 5000 DC boast a ready-for-anything attitude.Bring on big loads,the big jobs no one wants to tackle.Couple 60'
(18m) of wire rope with the powerful three-stage planetary gear train and you've got a peerless load-mover.
Specifications
Rated line pulls: 5000 lbs. (2268 kg)
Gear reduction ratio: 235:1
Motor: Permanent magnet motor(Input Power)1.61 hp / 1.2kW (DC 12V)
Overall dimensions: 14.83" x 6.3" x 7.57" (377mm X 160 mm X192 mm)
Drum diameter/length: Ø 2.48" (D) x 3" (L)(Ø 63 mm x 76mm)
Rope: Ø 1/4"x60'(Ø6.4mm x 18.3 m )
Mounting bolt pattern: 4.25"x 4.5"(108mm x 114.3 mm)
PACKAGE
Gross Weight: 23kg
Box Dimension: 430*270*230mm

Line pull	Line speed	Motor	Pull by layer
lbs. (kg)	ft/min (m/min)	Current	Layer/Lbs.(Kg)
0	15.1 (5.0)	50 amps	1/5000 (2268)
1000 (454)	13.5 (4.1)	90 amps	2/4221 (1915)
2000 (907)	10.5 (3.2)	130 amps	3/3653 (1657)
3000 (1361)	9.2 (2.8)	170 amps	4/3219 (1460)
4000 (1814)	7.9 (2.4)	205 amps	5/2877 (1305)
5000 (2267)	6.6 (2.0)	240 amps	6/2601 (1180)

Mounting plate Hawse fairlead Wired remote control 5/16 Hook FAQ
1.What's your product range?
Electric winch
2.When Can I get the quotation?
We usually quote within 24 hours after we get your inquiry .
3.How can I get a sample to check your quality?
After price confirmation, If you need the samples, you need pay the express fee and the sample cost
4.What about the lead time for mass production?
We can sure within 15-20 days delivery time, but depends on the quantity !

---
