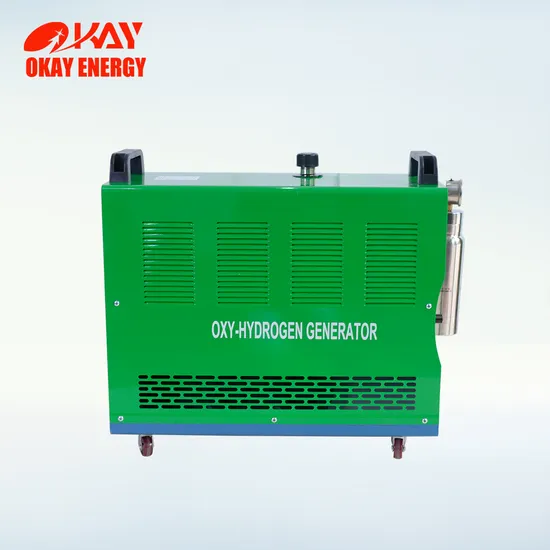

Oxyhydrogen Heat Sealing Machine for Laboratory Ampoule Bottle

Product Description

Oxyhydrogen Heat Sealing Machine for Laboratory Ampoule Bottle
The data sheet

Model Number	OH100	OH200	OH300	OH400	OH600
AC Voltage Requirement (V)	220/110	220/110	220/110	220/110	220/110
Phase	single	single	single	single	single
Rated Power(KW/h)	0.4	0.8	1	1.4	2
Max Gas Output	100L/h	200L/h	300L/h	400L/h	600L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2
Max. Water Consumption (L/h)	0.06	0.1	0.16	0.21	0.33
Water Feed	manual	manual	manual	manual	manual
Max. Flame Modifier Consumption (L/h)	0.05	0.1	0.15	0.17	0.15
Flame Modifier Feed	manual	manual	manual	manual	manual
Dimensions - L*W*H (mm)	390*250*510	450*250*510	590*250*510	710*250*510	930*250*510
Gross Weight (kg)	15	20	25	35	45
Ventilation Space Requirement (mm)	200 in each direction	200 in each direction	200 in each direction	200 in each direction	200 in each direction

Larger industrial

Model Number	OH1500	OH3000	OH5500	OH7500	OH10000	OH20000
AC Voltage Requirement (V)	380	380	380	380	380	380
Phase	three	three	three	three	three	three
Rated Power(KW/h)	4.5	9	17.5	23	31	70
Max Gas Output	1500L/h	3000L/h	5500L/h	7500L/h	10000L/h	20000L/h
Max. Working Pressure (kg/cm 2 )	2	2	2	2	2	2
Max. Water Consumption (L/h)	0.8	1.6	2.8	4	5.6	11.6
Water Feed	auto	auto	auto	auto	auto	auo
Dimensions - L*W*H (mm)	1070*670*1000	700*1100*1280	750*1300*1650	850*1300*1820	1050*1400*1900	2300*1100*1800
Gross Weight (kg)	210	300	396	552	610	1400
Ventilation Space Requirement (mm)	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction	400 in each direction

Automatic ampoule filling and sealing machine specifcations

Model	OKABFKJ2/1-2
Available Heads	single head/double head
Production Capacity(Pieces /Hour)	3600-3900
Power Consumption(KW/H)	0.55
Ampoules	5-10ml;20ml
Fuel Consumption(m3/h)	Coal gas 3-3.5m3/H; LPG 1.5-2m3/H;Oxy-hydrogen gas 1-1.5m3/H combustion-supporting gas:Oxygen
Dimension(L*W*H-mm)	1350*500*1300
AC Voltage(V)	110/220V 50-60 Hz
Weight(KG)	300

Video Demonstration
1)video for lab ampoule sealing:http://okayenergy.en.made-in-china.com
2)video for automatic ampoule filling and sealing:http://okayenergy.en.made-in-china.com
Machine accessories for free
Torch and nozzle: 1 set
Soft pipe: 2m
Flame arrester: 1 unit
Shipment and Package
About shipping We have long-term cooperated shipping counrier providing one-stop safety and quick shipping service.
Flexible Shipping method by international express(DHL,Fedex,UPS etc),by air,by sea as your requirement.Or using your shipping forwarder.
About Package Standard export package,1set/carton;For industrail larger machine,1set/woodern pallet;
Okay Service
1.24hour online chat,email or phone support for inquiry,technical and after-sales service;
2.Warranty:1year.(The core part of machine for 1year.The other parts of machine for half of year in addition to human damage;
3.online trade assurance service(Protection buyer's payment regarding on-time delivery and product quality.)
Okay Energy Equipment Co.Ltd
Adress:No.27,Wenxuan Road,Yuelu District,Changsha City,China
Tel: 0086-731-83979221
Web: okayenergy.en.made-in-china.com

---
