10 Ton Container Loading Mobile Dock Ramp for Warehouse

Product Description

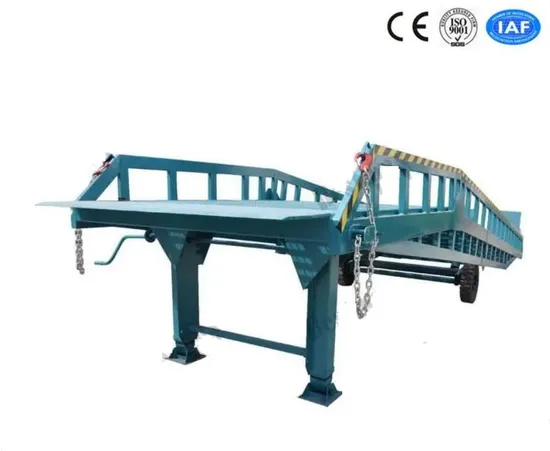

Adjustable Mobile Dock Ramp For Loading Cargo
Main Specification:

Model	DCQY 6-0.8	DCQY 8-0.8	DCQY 10-0.8	DCQY 6-0.6	DCQY 8-0.6	DCQY 10-0.6
Loading Capacity	6000 Kg	8000 Kg	10000 Kg	6000 Kg	8000 Kg	10000 Kg
Overall Length	10.50 m	10.50 m	11.20 m	10.50 m	10.50 m	11.20 m
Overall Width	2.10 m	2.10 m	2.10 m	2.10 m	2.10 m	2.10 m
Net Width	2.00 m	2.00 m	2.00 m	2.00 m	2.00 m	2.00 m
Slope Length	7.00 m	7.00 m	7.50 m	7.00 m	7.00 m	7.50 m
Platform Length	2.20 m	2.20 m	2.40 m	2.20 m	2.20 m	2.40 m
Labial Plate Length	0.30 m	0.30 m	0.30 m	0.30 m	0.30 m	0.30 m
Working Height	1.00-1.80 m	1.00-1.80 m	1.00-1.80 m	1.20-1.80 m	1.20-1.80 m	1.20-1.80 m
Weight	2670 Kg	2730 Kg	2910 Kg	2720 Kg	2780 Kg	2980 Kg
Remarks	Without Outriggers			With Outriggers

If you require more heavier loading capacity, we can also make it as per your customized request.
Description:
Mobile Dock Ramp is an auxiliary machine for loading and unloading cargo with forklift coordination use. The forklift can drive from the ground to the truck compartment to work directly through the Mobile Dock Ramp. There is no need to connect to power supply, for it uses manual hydraulic power. Only one man needed to manipulate the machine to load and unload goods safely and fast. And there is safety locking chain in the dock ramp to connect the machine to the truck and prevent moving when loading and unloading cargoes. With it, you can save abundant labor-using, increase the efficiency of loading and unloading, and speed up the flow of goods, then get more economic benefits.
Main Features:
1. Reinforced gusseted lip
2. Heavy duty (6-8 box beams) deck construction
3. Non skid tread plate deck and lip
4. Full width one-piece lip hinges pin and tube
5. Heavy duty high pressure cylinders
6. First class hydraulic power unit, good seal capability and long service life
7. Forklift pick-up slot
8. The safety locking chains to attach yard ramp to the rear of vehicles
9. Brake pads to prevent yard ramp from moving when load or unload goods
Main Configuration:
Hydraulic System: China brand Hydraulic Cylinder Φ80*2, NOK sealing Platform Surface: WB325/1 steel grating Main Body Profile: 160*60*4.5.mm rectangular tube Fence: 100*40*4mm rectangular tube and 80*40*4mm rectangular tube Connecting Board: 16mm plate and 3mm checkered plate Tire: Φ500-8 solid tire Anti-skid tread plate platform Manual Hydraulic Power Forklift traction device Brake pads Safety locking chains to attach yard ramp to the rear of vehicles
Optional Configuration:
Screw-type Outrigger for container truck Hydraulic Power Pack Italy brand: Hydrapp/ Swiss brand: Bucher Pump: Italian Manual Pump, Electrical Pump
Product Details:
Factory Equipment:
Clients & Exhibition:
Other Related Products:
Company Profile:
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
We are also the CE certified manufacture and joined IPAF member.
Our Certificates:
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.

---
