Outdoor P10 LED Video Wall TV Screen Video LED Display

Product Description

Specification:

Light Chip
Type	SMD3535	Chip parameters	Red λd:(620-625nm) IV:(800-960mcd)
Color	1R1G1B	Chip parameters	Green λd:(520-525nm) IV:(1350-1650mcd)
Brand	Epister	Chip parameters	Blue λd:(470-475nm) IV:(330-400mcd)

LED Module
Pixel Pixel	10 mm	Module Size	320 mmWX160 mmH
Module Resolution	32×16=512(Dots)	Module Weight	0.46kg

LED Display Cabinet
Pixel Density	10000 Dots/m2	Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	96×96=9216(Dots)	Input Voltage	AC110-220V±10%,50/60Hz
Cabinet Dimension(W*H*D)	960x 960 x 140mm	Output Voltage	DC-5V,40A/60A/80A
Module Quanty /Cabinet	18 pcs = 3(w) x 6(h)	Grey Scale Levels	16bit
Cabinets Material	Iron Cabinet	Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	42 kg	Brightness Adjustment	256 color levels
Brightness	≥5800 nits	MTBF( mean time between failures)	5000 hours
Viewing Angle	Horizontal 160°, Vertical 160°	Life-span	100,000 hours
Nearest Viewing Distance	8 meter	Protection Level(front/back)	IP65
Power Consumption (Max)	900 w/m2	Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	300 w/m2	Working Temperature	-30ºC~50ºC
Display Function	Text,Graphics,Video	Humidity	15%~85%
Refresh Rate	≥2000Hz	Scan Mode	1/2

Control System
Control Mode	Synchronization/Asynchronization	Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 7, XP and Vista	Software	ED Studio Nova/Linsin
Communication Type	Net cable,3G,WIFI(Sold separately)	Control Card Input	DVI,USB,RJ45,HDMI(Sold separately)
Language	Chinese,Traditional Chinese,English,French,Japanese,Russian, Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian, Romanian,Arabic

Product description: Why choose Outdoor LED Display Screen?
1. Strong visual impact
The large-sized, dynamic, and audio-visual integrated LED advertising can motivate the audience's senses in an all-round way, effectively convey information and guide consumption.
2. Wide coverage
Outdoor LED displays are generally installed in areas where people are concentrated, such as shopping malls. Through high-frequency communication with user groups, it stimulates consumers' strong desire to buy and improves brand awareness.
Module:
3. Long release period
Outdoor LED advertising can be played around the clock. It is easier for the audience to see, it can better guide the potential customer crowd, and enable the merchant to achieve better publicity with less cost.
4. Low audience dislike rate
Outdoor LED advertising can broadcast programs to more audiences in a real and timely manner through live broadcast technology. Including special topics, columns, variety shows, animations, radio dramas, TV series, etc., the content is rich, avoiding the contact obstacles caused by the conscious and active avoidance of advertising audiences.
Cabinet:
5.Energy saving and environmental protection
The light-emitting element of the LED display is LED. Because the power of a single LED is very low, generally 0.04 ~ 0.08W, the power is several times lower, but the effect is much better. The LED display is made of environmentally friendly materials and is recyclable. It will not cause pollution and damage to the environment due to heavy use.
6. Posting information is simple and convenient
Connect to a computer through a data cable connection or wireless communication, and set up in the computer to publish advertising content, conveniently and quickly.

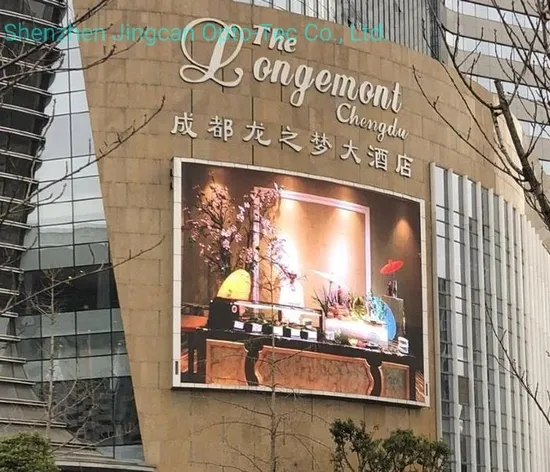

Application:
Company information:
JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.
The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LED products have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines
Qualification Honor:
Product Project:
Packing and Shipping:
FAQ:
Q1. Can I have a sample order for led Screen? A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.
Q2. What about the lead time? A:About 7~10 working days.
Q3. Do you have any MOQ limit for led light order? A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive? A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen? A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products? A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty? A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs

---
