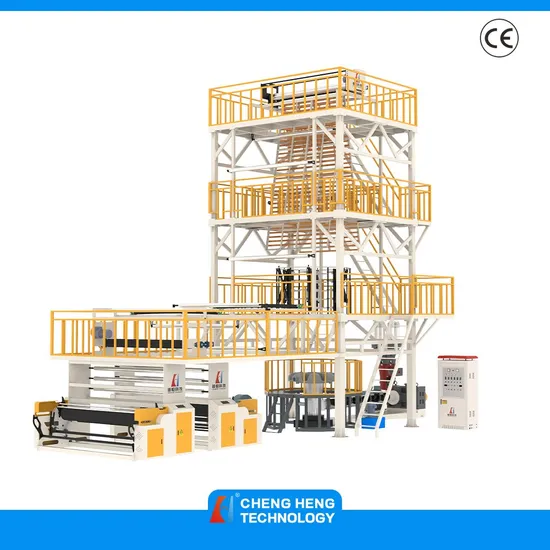

Chengheng Safe and Reliable Plastic Blown Film Extruder Machinery 1400-2000mm High Speed Mono-Layer Film Blowing Machine

Product Description

Product Description
This machine mainly use to produce big size film.Its high output rate and exceptional product quality are achieved through its advanced screw structure that delivers high-quality films with excellent mechanical strength.This makes it an ideal option for the production of food and non-food packaging,greenhouse films and agricultural mulch films.
Product Parameters

Model	75-1600	80/1800	90/2200	100/2400	110/2600	120/2800	150-2800	150-3200
Width of the film	600-1400	1000-1600	1400-2000	1500-2200	1500-2400	1800-2600	1800-2600	2400-3000
Thickness of the film	0.02-0.15mm
Output	70-150kg/h	80-220kg/h	100-270kg/h	100-320kg/h	100-380kg/h	150-420kg/h	150-540kg/h	160-560kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	LDPE LLDPE MDPE CACO3 RECYCLING
Diameter of screw	Φ75	Φ80	Φ90	Φ100	Φ110	Φ120	Φ150	Φ150
L/D ratio of screw	32:1 (With force feeding)
Gear box	225#	250#	280#	315#	330#	375#	375#	375#
Main motor	37kw	55kw	75kw	90kw	110kw	132kw	160kw	160kw
Die diameter	Φ350mm	Φ400mm	Φ500mm	Φ550mm	Φ600mm	Φ650mm	Φ650mm	Φ750mm

Detailed Photos
Certifications
Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient.The company covers an area of 26,000 square meters. We have a modern intelligent operation workshop, specializing in the R&D and production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery.
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.

---
