Basic Info.
Electric Winch Model
4WD Winch
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Mountain Road
Gear Train
3 Stage Planetary
Motor (Series Wound)
4.5kw/6.0HP
Braking Action
Automatic in The Drum
Transport Package
552X160X218mm Export Carton
Production Capacity
600PCS Per Day
Product Description
WHY YOU MUST CHOOSE US: 1. We are a professional winch factory with many years of experiences. 2. We have advanced facilities for production, many accessories of the winch are made by ourselves with good quality.So good quality but reasonable price on the market. 3. We are a honest manufacture with many certificates like CE certificates which can assure the quality of our products. 4.We have a lot patent certificates which show our strong research productivity,making winches styles advance with the times,guaranteeing your quick development and sales in your market.
5. We have strong engineering team that can give best solution for your projects,6. We can OEM for your products.Don't hesitate to contact us-Such a excellent business partner!Let's get win-win in our long-term cooperation.Any questions,just talk to us

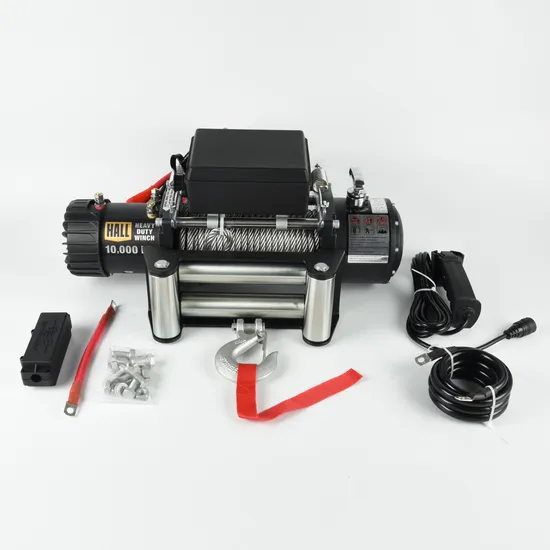

Winch model: 4 WD winch CM10000
Performance: Single line rated pull 10000lb(4536kg) 12VDC
Motor: 5.6HP/4.2kw, Series Wound
Control Remote switch: 12ft(3.7m)lead
Gear train: 3 Stage Planetary
Gear reduction ratio: 265.2: 1
Attractive in price and quality. Welcome to contact us for more details.
| CM10000 |
| Performance | 12VDC |
| Single line rated pull | 10000lb(4536kg) |
| Motor | 5.6hp/4.2kw,Series Wound |
| Control | Remote switch,12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear reduction ratio | 265.2:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum size | Drum size Diameter2.5"(63.5mm) Length 8.8"(224mm) |
| Cable | 94ftof 21/64" diameter(28m of 9.2mm diameter) |
| Fairlead | 4-Way Roller Fairlead |
| Remote Control | Included |
| Battery | Recommended:650CCA minimum for winching |
| BatteryLeads | 2 gauge,72"(1.83m) |
| Weight | N.W.84lbs(41kg) G.W. 94lbs(45.5kg) |
| Overall dimentions | (LxWxH)21.3"x6.3"x8.6"(552x160x218mm) |
| Mounting Bolt Pattern | 10.00±0.015"x4.50±0.010"(254x114.3mm) |
| Electric winch with series wound motor |
| Model | Capcity | Power | Steel cable | Size (L X W X H) | NW |
| CM1000 | 10000LB | DC12V | ø9.2mm X 28m | 552 X 160 X 218mm | 40KG |
| Pull, Speed, Amperes, Volts (First Layer) |
| Line Pull (lbs./ kg) | Line Speed FPM(m/min) | Motor (Amps) |
| 0 | 22.0ft(6.8m) | 80 |
| 4000 (1814) | 11.5ft(3.5m) | 170 |
| 6000 (2722) | 9.2ft(2.8m) | 220 |
| 8000 (3629) | 7.8ft(2.4m) | 280 |
| 10000 (4536) | 6.5ft(2.0m) | 340 |
| Layer | Rated Line Pull (lbs./kgs) | Tatal Rope On Drum (ft/m ) |
| 1 | 10000 (4536) | 19.6 (6.0) |
| 2 | 8000 (3629) | 42.6 (13.0) |
| 3 | 6670 (3030) | 72.0 (22.0) |
| 4 | 5720 (2600) | 92.0 (28.0) |
>>
