Mine Channel Construction Work Wheel Excavator for Sale

Product Description

Product Description

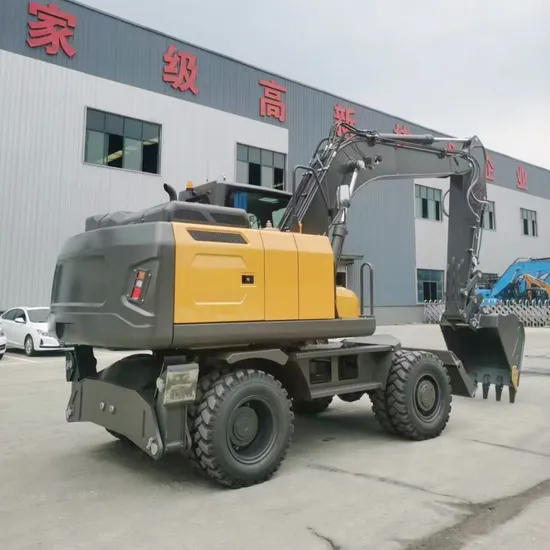

Wheel Excavator 15ton Wheel Excavator For Sale Wheeled Excavator Machine For Construction
1.Wheels: Unlike other types of excavators that have tracks, a wheel excavator has wheels, which enable it to move quickly and easily on a variety of surfaces, including paved roads.
2.Boom: The boom is the long arm of the excavator that is used for digging and excavation tasks. It is typically made of heavy-duty steel and can extend to reach deep into the ground.
3.Bucket: The bucket is the part of the excavator that is attached to the end of the boom and is used for digging up soil and other materials. Buckets come in a variety of sizes and shapes, depending on the type of excavation work that needs to be done.
4.Cab: The cab is the enclosed area where the operator sits and controls the excavator. It is typically equipped with controls for the boom, bucket, and other functions, as well as windows for visibility.
5.Engine: The engine is the power source for the excavator and is typically located in the rear of the machine. Wheel excavators are usually powered by diesel engines that provide a high amount of torque and power.
6.Counterweight: The counterweight is a heavy weight located at the rear of the excavator that helps to balance the weight of the boom and bucket when they are extended.
7.Stabilizers: Stabilizers are devices that extend from the side of the excavator to provide additional stability when the boom and bucket are in use.
8.Hydraulic system: The hydraulic system is used to power the boom, bucket, and other functions of the excavator. It is typically operated by the operator using foot pedals and hand controls.
1 Hydraulic walking continuously variable speed, high low-speed torque, up to 39km/h at high speed, fast transition.
2 Front push shovel with balance oil cylinder and rear support leg, higher stability.
3 Four wheel drive, four wheel brakes, dual air pump design, higher safety 4 Fast turning speed, stable turning brake. Flexible and simple electronic operation, working while walking.

Detailed Photos
Product Parameters

Overall dimension
Overall width of upper assembly	2490mm
Overall width	2496mm
Overall height	3543mm
Tail swing radius	2290mm
Ground clearance of counterweight	1208mm
Wheelbase	2800mm
Crawler gauge	1914mm
Min. ground clearance	350mm
Overall length	7340mm
Overall height of boom	3543mm
Min. ground clearance	480mm
Overall length	10500mm
Overall height of boom	3430mm
Overall parameters
Bucket capacity	0.6m³
Overall operating weight	15100kg
Max. excavation force	97.7KN
Slew speed	12.2r/min
Traveling speed (low/high)	3.6/37.5km/h
Max. digging radius	7770mm
Max. digging depth	4700mm
Max. digging height	8395mm
Max. dumping height	5943mm
Min. front slewing radius	2613mm
Min. front slewing radius	4220mm
Engine
Model	JWJH150
Type	Four-stroke,inter-cooled, supercharged
Rated Power@Revolution Speed	110kW
Displacement	5700mL
Cylinder bore *stroke	98*126mm
Emission standard	GB20891-2014 China Phase III
Rated fuel consumption	214g/kw.h
Max. torque	690N.m

Our Advantages

Optional attachments
Company Profile
Exhibition
Certifications
Packaging & Shipping

FAQ
Q:How to guarantee the quality problem?
A:We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery, absolutely eliminate defective products.
Q:Why choose us?
A:In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
Q: How long is your delivery time?
A:In the case of stock, it is usually 2-5 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods? A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc.Pleaseprovide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance ,balance before shippment. If you have other needs, you can also contact us.

---
