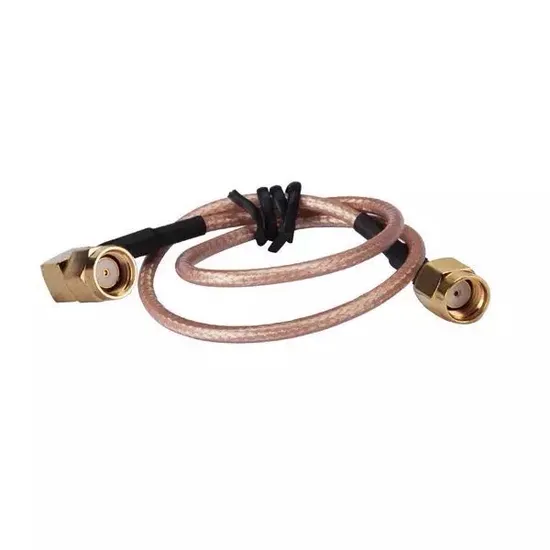

Rpsma Right Angle Plug to Rpsma Male RF Coaxial Rg316 Jumper Cable

Product Description

Specifications
Electrical Specifications

Connector Impedance	50 ohm
Operating Frequency Band	0 - 3GHz
RF Operating Voltage, maximum (vrms)	2700.00 V
Outer Contact Resistance, maximum	0.20 mOhm
Inner Contact Resistance, maximum	1.0 mOhm
Insulation Resistance, minimum	5000 Mohm
VSWR	<1.3
Insertion Loss	typical 0.05×√f dB+L

Mechanical Specifications

Mating cycles

500 cycles

Environmental Specifications

Operating Temperature	-40°C to +125 °C
Storage Temperature	-55°C to +125 °C

Components

Name	Material	Plating
Body	Brass	Tri-metal
Inner Contact	Phosphor copper	Gold
Insulator	PTFE	---

Company Show
EZCON is a product and solution provider, the company provides high quality, high performance, and low-cost cable assembly/connector products. EZCON engages in R&D, for telecom and electronics products with a focus on RF cable assemblies/connectors, high speed interconnect cable assemblies/connectors, and high-end test/calibration products. The company has the capacity of product design, engineering service, low-cost production/sourcing, assembly, and testing. EZCON combines the advantages of low-cost production in China with a high level of engineering expertise, service, and quality.
Our Customers
Company Products and Technologies
Customers Testimonials
Main Company Equipments And Production line
Products application sites
Company Certification
FAQ
1.Q: What's your MOQ?
A: 50 pcs
2.Q: What's your delivery time?
A:7-14 days after receiving PO.
3.Q: Does your company do a customized design?
A: Yes, we do OEM and ODM
4.Q: What is your after-sale service program?
A: Please see our service manual for details.
5. Q: Can you send samples to us for the test?
A: Yes, samples can be sent at a cost.
WHY CHOOSE EZCON
1)Sales directly to the customer.
2) First-class performance, highest quality, and life cycle.
3) Fast delivery: 1-2 working days.
4) Customerized Design.
5) Very competitive price.
7) Fast, enthusiastic, thoughtful, caring, and excellent service.
8) Quick response(replying within 30 minutes of receiving the request).
Our service
1. Email reply within 24 hours.
2. One-stop solution for electronic components, service, and manufacturing.
3. Each piece must pass the precision test.
4.Quality after-sales service.

---
