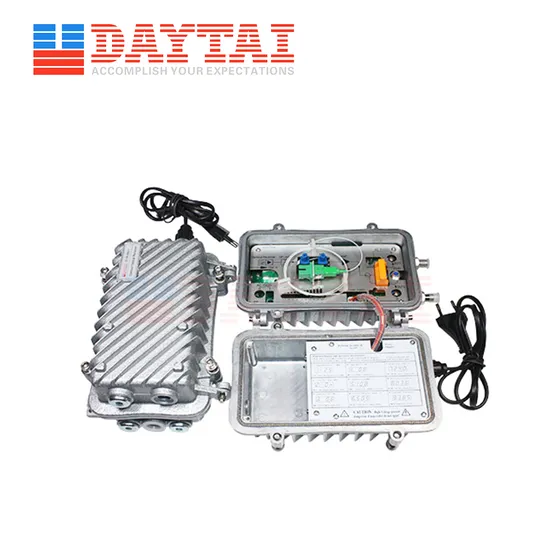

2 Way Output Optical Receiver Suitable for FTTH Drop Cable

Product Description

Description
Optical Receiver With AGC Suitable For Drop Cable-(DT-DORA-8602:Frequency Range:47~862MHz,RF Output Level:≥102dBuV),(DT-DORA-8606:Frequency Range:47~862MHz,RF Output Level:≥106dBuV),(DT-DORA-1G06:Frequency Range:47~1000MHz,RF Output Level:≥106dBuV),Receiving optical wavelength:1290~1600nm,Receiving optical power:-8~+2,Optical connector type:SC/APC OR FC/APC,AGC:Optical control AGC,AGC Range:-6~+2 dBm,Optical return loss:≥45dBm,
C/CTB:≥65(-1dBm receiving, 40 channels),C/CSO:≥60(-1dBm receiving, 40 channels),Frequency range:45~862MHz,Power:AC35~90V OR AC110~265V,Outer
dimension: 240mm×150mm×110mm,Net weight:2.2Kg.With or Without SNMP is optional.
Features
⊙ AGC function(-6~+2dBm).
⊙10-section LED displays input optical power.
⊙1310nm and 1550nm dual-window receiving.
⊙Equipped AC60V sole power supply port, easy to operate.
⊙Each port is equipped AC60V LED indicator light, easy to operate.
⊙Output designed with adjustable attenuator and equalizer, easy to debug.
⊙Output plug-in one-way tap or two-way splitter, easy to replace and operate.
⊙Perfect surge suppression circuitry, which is effectively to prevent shock and lightning surge.
⊙Built-in High-reliable switching power supply, small temperature rise, high conversion efficiency, wide voltage range.
⊙High-quality die-casting aluminum housing, dust-proof, water-proof, shield and good heating performance, convenient to install.
⊙SNMP component can be selected for installation to achieve remote control on working status and performance Parameter.
Specification

Items	Unit	Parameters
		DT-DORA-8602	DT-DORA-8606	DT-DORA-1G06
RF output ports		2
Wavelength range	nm	1290~1600
Optical connector	-	FC/APC or SC/APC
Input optical power range	dBm	-8~+2
AGC Function	-	Optical control AGC
AGC Scope	dBm	-6~+2 dBm
Optical return loss	dB	≥50
In-band flatness	dB	±0.75
Frequency range	MHz	47~862		47~1000
RF output level	dBµV	≥102dBuV	≥108dBuV	≥110dBuV
RF output impedance	Ω	75
Attenuator adjusted range	dB	0~20
Equalizer adjusted range	dB	0~18
Output return loss	dB	≥16(47~550MHz);≥14(550~862MHz)
C/N	dB	≥51(-1dBm receiving, 59chs PAL-D)
C/CTB	dB	≥65(-1dBm receiving,59chs PAL-D)
C/CSO	dB	≥60(-1dBm receiving, 59chs PAL-D)
Power supply	V	AC35~90 or AC110~265
Consumption	W	12(max)	15(max)	15(max)
Operating temperature	ºC	-40~+55
Dimension	mm	240×150×110
Net weight	Kg	2.2

Q1:What's the delivery time?
Re:The lead time is 15-20 days after order confirmed.
Q2:Can you send me a free sample?
Re: We are willing to send you free sample,if you would like to pay the shipping costs.
Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q4:What's the payent method?
Re: We accpet T/T, Western Union, Paypal.
Q5:How to ship the items to me?
Re: Courier (DHL , TNT , FEDEX , UPS , EMS ) , By Air, By Sea are available.

---
