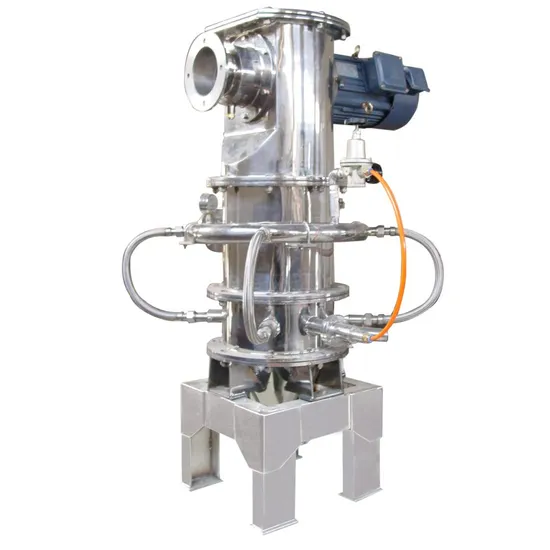

Fluidized Bed Airflow Crushing Machine

Product Description

Fluidized bed airflow crushing machine
Working Princible
After years of technical research and development, upgrading and perfecting, in recent years, our company developed into LQF series fluidised bed air mill, LQF series fluidised bed air mill is a new generation of ultra-micro air milling equipment, set the international advanced multi-barrel technology, fluidised bed technology and vertical classification technology in one, to achieve the diversification of the flow field, fluidisation of the material layer, classification of the vertical and electromechanical integration of combined technology systems, is the development of air mill It is the development direction of air flow mill.
Performance & Characteristics
Fluidised bed type air flow mill, set crushing, classification, mixing, homogenization mechanism in one, to achieve the unique advantages of on-line operation, so it has the following characteristics:
(1) the use of a certain contraction angle of the Laval crushing nozzle, high impact velocity, particles are accelerated by the air nozzle hedge impact, the impact velocity is the two relative speeds of the iteration of the crushing efficiency.
(2) Low energy consumption, compared with other types of airflow mill, energy saving 30 to 40%.
(3) As the main crushing effect is the particles in the fluidised bed of mutual impact and collision, high-speed particles rarely collide with the grinding wall and the material does not pass through the nozzle, etc., wear and tear is extremely small, and can even be used for crushing the high hardness of the Mohs' pressure of up to 9.5 grade materials.
(4) Built-in large-diameter vertical grouping rotor grouping high precision, the product size distribution range is narrower, the particle size adjustment is extremely convenient, and is not affected by the feed size.
(5) Wide range of application, and can crush heat-sensitive materials.
(6) equipment running smoothly, low noise, its value is far below the permitted value (<85dB).
(7) Compact structure, covers an area of 3 to 6 times less than other traditional air mill, 6 to 10 times smaller.
(8) Classification chamber can be turned over 180 °, crushing chamber has a quick-open door structure, so that the equipment is easy to clean, easy to change the variety of crushing.
(9) advanced automatic control function, so that the operation is very convenient, safe and reliable operation.
(10) The whole system is fully enclosed, the equipment is advanced in appearance, beautiful and practical, reflecting the modern deep processing of powder technology should be a good working environment and superior performance.
Scope of Application
This machine can be widely used in chemical industry, metallurgy, mining industry, ink industry, lithium battery, medicine, pesticide, plastics, papermaking, pigment, paint, dyestuff, abrasive, food, cosmetics and other industries.
Product Parameters
Detailed Photos

Our Factory
Production Line

---
