Xk27 Series Traveling Gantry CNC Milling& Boring Machine Machining Center Xk2740

Product Description

Product Description

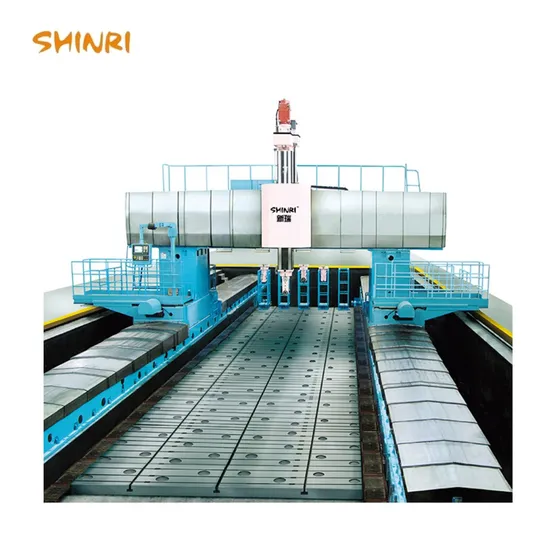

The main machine structure is the gantry frame moving, workbench fixed structure. It can be widely used in automotive, aerospace, rolling stock, internal combustion engine, textile machinery, printing and papermaking machinery, metallurgical machinery and other industries of all kinds of large box, frame and mold precision parts boring, milling, drilling and tapping and other processes of precision processing. With a suitable accessory milling head, the workpiece can be machined on five sides. Each axis adopts precision grating ruler to realize full closed-loop control. The machine tool has the characteristics of high processing precision and high production efficiency.
Product Parameters

Specification	Unit	XK2740		XK2750
		-120	-160	-160	-180
Table size	mm	12000×4000	16000×4000	16000×5000	18000×5000
X/Y/Z travle	mm	12500/5500/1500	16500/5500/1500	16500/6500/1500	18000/6500/1500
Max. loading of table	kg/m2	5000	5000	5000	5000
Cross gantry width(with cover)	mm	5000	5000	6000	6000
RAM TYPE		Square ram	Square ram	Square ram	Square ram
Spindle speed	r/min	10~1500	10~1500	10~1500	10~1500
Spindle motor power	kW	60	60	81	81
Rapid travel speed(X/Y/Z)	r/min	10	10	8	8
Overall dimension	m/min	18800×8800×7800	21800×8800×7800	23500×8630×8450	25500×9960×8450
Weight	T	200	220	260	300

Related products

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.

---
