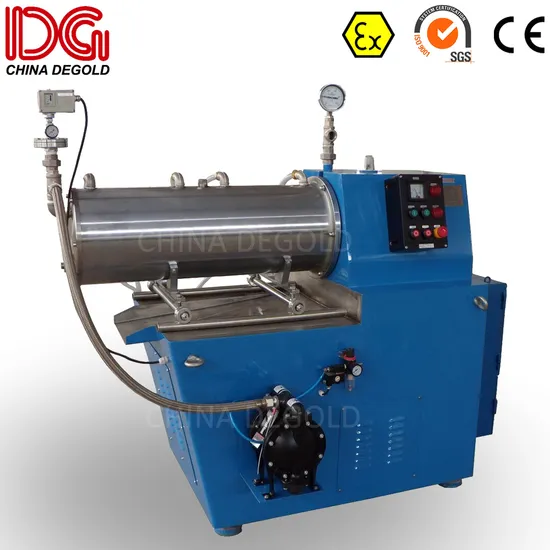

Horizontal Sand Mill Disc Grinder Mill

Product Description

Applications Paint Printing Inks Agrochemistry Pigments / Dyes Ceramics / Glass Ores / Minerals / Metals Life Science Food

Automotive Paint Top Coat Clear Coat Cathodic Dip Coating Coil Coating Fillers Construction Paint Wood Paint Marine Paint Dispersion Paint Road Marking Paint	Screen Printing Inks Flexo Printing Inks Rotogravure Inks Sheet-fed Ink jet Heat-set Cold-set
Fertilizer Pesticides Suspension Concentrate(SC)	Pigment Production Titanium Dioxide
Ceramic Pigments Table Ware / Sanitary Ware Technical Ceramics	Graphite Talc Calcium Carbonate
Biotechnology Cosmetics / Personal Hygiene Pharmaceuticals	Cocoa Liquor
More applications, please contact with us

ZM series Introduction
Following is the technical table of ZM series bead mills produced by Chongqing Degold Machine Co., Ltd.
ZM Series ZM0.3 ZM1.4 ZM5 ZM15 ZM20 ZM30 ZM50 Effective grinding chamber volume (L) Main motor power (kW) Grinding shaft rotary speed (r/min) Adjustable range of materials flow (L/min) Max. cooling water consumption (t/h) Estimated productivity (kg/h) Length Width Height Net weight (kg) Ex proof Type Seal Type Inner Grinding Cylinder Material Grinding Disc Material Pump Type Mill Speed Adjustment Way

0.3	1.4	5	15	20	30	50
0.75	2.2	7.5	15	18.5	22	30
0~1500	0~2800	1650	1200	1200	1120	900
	0~1	0~2	0~2	0~10	0~10	0~60
	0.5	1	1	2	2	2.5
	2~20	12~120	30~300	40~400	50~600	100~1000
640	650	1250	1560	1600	1860	2100
410	570	900	1050	1050	1100	1150
485	885	1250	1550	1550	1550	1650
50	500	700	800	980	1100	1300
Ex proof / Non Ex proof
Single Mechanical Seal / Double Mechanical Seal
SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Diaphragm pump / Gear Pump / Screw pump
With inverter / Without inverter
Note: Technical data are different if there are some customized constructions. We'd like to send you the suitable model bead mills for your production, please feel free to contact with us.

Series Of Horizontal Bead Mill
Following is the introduction of horizontal bead mills produced by Chongqing Degold Machine Co., Ltd.
Series Description Browse ZM LAB ZM ZM-X ZM-E ZM-K ZM-T

laboratory bead mills are used for research and development. volume: 0.3L | 1.4L	Browse Products
ZM series bead mills are suitable for middle viscosity water based and solvent based poducts wet grinding and dispersion. volume: 5L | 15L | 20L | 30L | 50L	Browse Products
ZM-X series bead mills are suitable for nano meterswet grinding and dispersion. volume: 5L | 15L | 20L | 30L | 50L | 100L | 200L	Browse Products
ZM-E series bead mills are rotor gap separator bead mills for nano wet grinding. volume: 20L | 50L | 100L | 200L | 300L | 500L | 1000L	Browse Products
ZM-K series are conical pin typebead mills. This series bead mills are suitable for high viscosity materials wet grinding and dispersion. volume: 6L | 10L | 25L | 60L | 150L	Browse Products
ZMT series are turbo designbead mills which are suitable for nano meters wet grinding and large productivity. volume: 8L | 18L | 25L | 60L	Browse Products
Any question, please contact with us.

Company Introduction
Chongqing Degold Machine Co., Ltd. Degold is chemical equipment & machinery (wet grinding bead/sand/pearl mill machine) manufacturer in China
Degold designs, develops, constructs, and installs production lines and advises, trains customers.
Chongqing Degold Machine Co., Ltd. has always endeavored to develop grinding and mixing technique in chemical industry.
Now we have developed various models Horizontal Bead Mills and Dispersers to fulfill industrial production needs ranging from paints, inks, pharmaceuticals, food, dyes, cosmetics, petrochemicals, and non-mental mines.
Certification All Degold technical experts have been in this field since 80s in the 20th century. We produce strictly as the requirements of ISO9001:2008 Quality System and CE standards.
Customers Machines are popular in domestic and oversea market. We have cooperated with so many famous painting and powder coating manufactures such as Akzo Nobel, 3M, Clariant, and Sherwin-Williams Co., Ltd. etc.
Markets From 2007, we have begun to service oversea customers directly. Our machines have been exported to many countries and regions such as Australia, Argentina, Belgium, Brazil, Colombia, Chile, Indonesia, India, Iran, Malaysia , New Zealand, Peru, Paraguay, Pakistan, Poland, Singapore, South Africa, Spain, Tunisia, Thailand, Uruguay , Vietnam etc.
Typical Production Line Layout:
Bead Mills during Exhibition:

---
