Nanbei Instruments Bds400 Medical Biological Microscope

Product Description

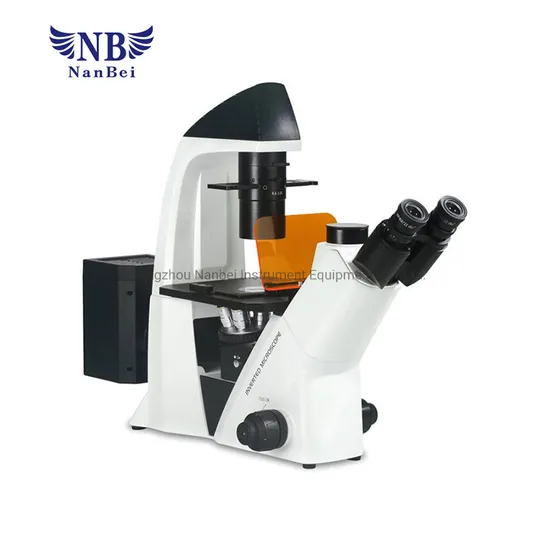

NANBEI INSTRUMENTS BDS400 Inverted Biological Microscope Product Description
Performance characteristics:
1. New research and new development
2. Apply to observation and cultivation for cell tissue
3. Wide field eyepiece, view field up to Φ23mm,more comfortable for observation
Product Parameters
BDS400 Inverted Biological Microscope Outfits:

Item	Specification		Outfits
Eyepiece	WF10×/22mm		**
LWD Infinity Plan Objectives	LPL 4×/0.11	W.D.=12.1mm	○
	LPLAN 10×/0.25	W.D.=8.3mm	*
	LPLAN 20×/0.40	W.D.=7.2mm	*
	LPLAN 40×/0.60	W.D.=3.4mm	*
LWD Infinity Plan Phase Contrast Objectives	LPL Ph P 4×/0.10	W.D.=9.2mm	○
	LPL Ph P 10×/0.25	W.D.=8.3mm	○
	LPL Ph P 20×/0.40	W.D.=7.2mm	*
	LPL Ph P 40×/0.60	W.D.=3.4mm	○
Annular Spot	10×/20×/ 40×		*
	4×		○
Seidentopf Trinocular Head	Inclined 45°, interpupilary distance: 48-76mm Light distribution (both): 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece)		*
Nosepiece	Quintuple		*
Mechanical Stage	Stage size: X×Y: 210×241mm, Round slide size:Φ110mm, Attached mechanical stage (available for 96 holes plate, moving range X×Y:128×80mm.)		*
Culture Dish Holder	65mm		○
	54mm		*
	35mm		○
	blood cell counter		○
Condenser	Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser).		*
Koehler Illumination	6V/30W (input voltage:100V~240V)		*
	5WLED,input voltage:100V~240V		○
Filter	Blue		*
	Green		*
	Amber /Grey		○
C-mount	1 X /0.5X /0.75X C-Mount (focus adjustable)		○
Epi Fluorescence Illumination	Epi fluorescence media unit , field diaphragm,center adjustable.		○
	100W mercury lamp ,5WLED(input voltage:100V~240V)		○
	B, G, V, UV fluorescence filters can be chosen		○

Note: "*"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
Our Advantages

1. Long working distance condenser N.A. 0.30,Working distance:72mm 2. Working distance: 195mm (without condenser),available for extra high culture dish 3. Large size stage, convenient for research. Size:240mm(X)× 210(Y)mm 4. Mechanical stage available for 96 holes plate. Moving range:128mm(X)× 80(Y)mm
1. Large diameter quintuple nosepiece can be installed more objectives, more convenient for using. 2. Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece)
Culture Dish Holder

Objective Parameter List (Cover-glass thickness1.1mm):

	Objectives	N.A.	Working distance(mm)
LWD Infinity Plan Objectives	LPL 4×	0.11	12.1
	LPL 10×	0.25	8.3
	LPL 20×	0.40	7.2
	LPL 40×	0.60	3.4
LWD Infinity Plan Phase Contrast Objectives	LPL Ph P 4×	0.10	9.2
	LPL Ph P 10×	0.25	8.3
	LPL Ph P 20×	0.40	7.2
	LPL Ph P 40×	0.60	3.4

BDS400 Inverted Biological Microscope General Layout Diagram:
