PV Module Backplane Scratch Resistance Testing Machine

Product Description

PV Module Backplane Scratch Resistance Testing Machine
Standard
According to IEC61730-2 and UL1703
Purpose
The instrument used to polymer material as before behind surface's component is whether bear the electric shock danger on the install and maintain process normal operate
Parameter
1. The operate able adopt aluminum alloy material, table size: 1.4m× 0.65m.
2. The operate table include tracking pulley, tracking head slide displacement is very convenience

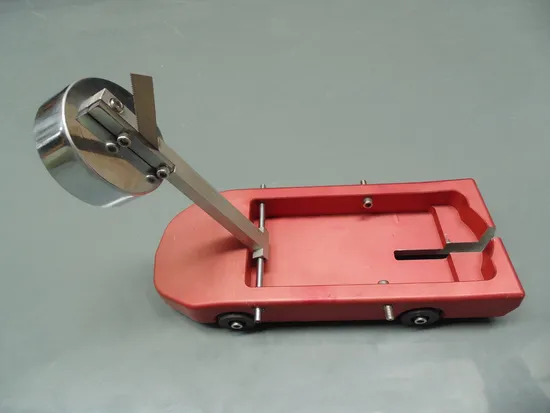

3. Small cart parts:
1)adopt carbon steel saw blade
2)Guarantee 0.64m± 0.05mm thick require, and satisfy 0.115± 0.025mm blade radius require.
3)distance and angle can adjust.
4)on the saw blade include the weights box.
5)According the IEC617302 standard require adjust weights, guarantee the test point suffer gravity 8.9N± 0.5N
4. Adopt Motor constant speed tracing, the speed continue adjust, tracking directing can adjust
5. Can guarantee cutting car to(150± 30)mm/s speed pull over component
The important parameter

Standard	IEC61730-2 and UL1703
the operate table size	1.4m×0.65m
samll cart parts materials	carbon steel saw blade
The mass of test fixture	8.9N±0.5N
The fixture speed	150±30mm/s

Testing machine images show

---
