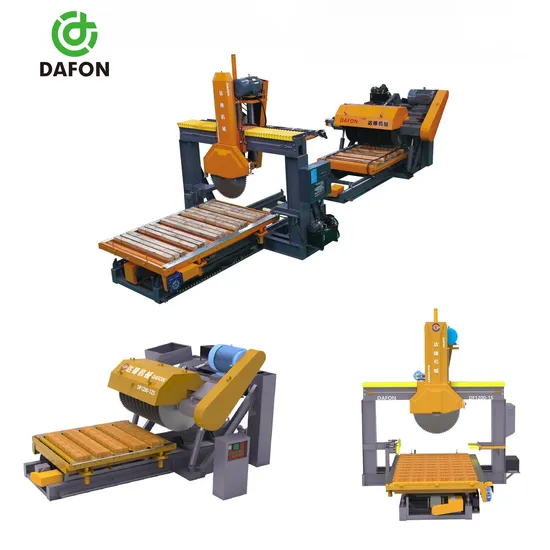

Dafon Stone Processing Machinery CNC Bridge Saw Marble Tile Rock Cutter Granite Slab Cutting Machine for Making Kerbstone Curbstone

Product Description

Production Introduction

One-stop solution for curbstone cutting With the rapid growth of the economy, city construction requires higher output and more precision for curbstone cutting. DAFON dedicated to curbstone-cutting machine lines for more than 10 years, we provide advanced full-line equipment solutions for curbstone.

1. The main engine adopts an integrated welding structure, which is durable
2. The whole machine adopts a hydraulic device, the lifting is stable and the cutting is smooth
3. The double trolleys are separately cut, saving the loading and unloading time and achieving the highest efficiency
4. After the chassis is welded as a whole, it is planned and processed by machine tools to ensure that the tracks on both sides are parallel
5. The cutting width can be customized. and the models of saw blades with different diameters can be customized

Performance Features

Large output: The equipment can hang 10 to 14 saw blades with a diameter of 1200mm at the same time to carry out operations, greatly increasing output.
High production efficiency: Stones are transferred through rollers between the two machines, saving manual loading and unloading time and improving production efficiency.
High cutting standard: The equipment uses a PLC programmable control system and a hydraulic lifting device, and is equipped with a template and a hydraulic arm. It adopts a shallow fast-moving cutting method to ensure the accuracy and quality of cutting.
Low equipment capital investment: Under the same production capacity, compared with other models on the market, the equipment investment can be reduced by 20% to 30%, reducing the capital investment pressure of enterprises.
Low cost of consumables: using shallow and fast cutting methods, less cutting, faster cutting, effectively reducing the loss of diamond cutter head by 30%~50%.

Technical Parameter

Name	Unit	DF1200-12S	DF1200-1S
Size(L*W*H)	mm	6000*5000*4000	6000*5000*4000
Max. saw blade diameter	mm	1200	1200
Max. number of saw blades	pcs	10-12	1
Max. cutting size	mm	2700*1750*450	2700*1750*450
Max. vertical stroke	mm	450	450
Working Voltage	v	3phase380	3phase380
Main motor power	kw	55-6	22-6
Size of the working table	mm	2500*2000	2500*2000
Weight	t	10	8

Solutions

1. The main part of the whole machine is made of integrated cast iron, which is conducive to the stability of the machine when cutting.
2. The main and auxiliary shafts are bidirectionally supported and connected, and the main shaft is more durable and not easy to wear after high-frequency quenching and tempering
3. The main machine adopts bilateral oil cylinder lifting instead of screw lifting, providing strong support for the machine
4. The large-scale trolley can process 2 pieces of 80cm blocks at the same time, and the stones are conveyed by the roller, which greatly improves the work efficiency
5. No need to install cement foundation, simple electric control operation, easy to use

1. No foundation needed, easy installation, easy for shipping.
2. It adopts an enlarged trolley, 2 pcs of block can be cut at one time, which can greatly improve output and efficiency.
3. It uses the main spindle and a vice spindle to seal together which can ensure the machine is stable while cutting hard granite.
4. It uses a simple program of movement on the controlling box, easy to set and handle.
5. A hydraulic system is adopted on the machine

Installation

1. Put the machine on the prepared ground.
2. Put several pieces of wood as thick as 50mm on the worktable to prevent blades from cutting into the worktable.
3. Install water pipe.
4. Blade installation: Open blade cover, unscrew 8 retaining bolts and position bolts with a dedicated spanner, loosen auxiliary spindle (shaft), put on blades and clamping plates as per intended stone size (thickness), align oil hole of the auxiliary spindle to air hole according to the arrow direction on auxiliary spindle and box, have them fixed with bolts, close blade cover.
5. Check transmission fluids of the spindle box, auxiliary spindle box, trolley track, and lifting parts.
6. Connect control cabinet power.

Applications

After Sales Service

We provide skilled and richly experienced technicians for installation and after-sales service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging Shipping

The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.

FAQ

Q1: What is your competitiveness?
A: We can provide a one-stop shopping service. Our machine has a good price with the best quality. Each machine has a long lifetime, high production capacity, and accuracy. Also, we could appoint our engineer to come overseas to help the customer if the machine has a problem.

Q2: When do you ship my order?
A: Normally 20-30 days after receiving final payment, but it can be negotiated if customers need it urgently.

Q3: How about the quality guarantee period?
A: one year for machine parts, 6 months for the electronic parts

Q4: What's your advantage? Why did we choose you?
A:1)Rich experience in stone machine production and R&D. We have the most professional techniques and team. More advantages in price
2) Great production capacity and Sustainable Supply. According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence, our defective rate is lower than 0.01%

Q5: How about the delivery of goods to our country?
A: For urgent or small orders with lightweight, the express courier will be preferable to save time and trouble of goods clearance(door to door); As for bulk orders or machinery orders, by sea(maritime way) is recommended for lower shipping cost. But it is taking a long time.

Dafon Company

Quanzhou Dafon Machinery Co., Ltd., located in Shuitou Town, is a professional stone machinery enterprise integrating design, manufacturing, and sales. Mainly produce curbstone assembly line equipment, Infrared bridge cutters, automatic edge cutting machines, Infrared middle bridge cutters, single arm block cutters, bridge block cutters, mining machines, and other types of stone machinery.
The company has advanced mechanical processing equipment, standardized workshops, a strong technical force, an efficient research and development team, and rich experience in stone machinery production, which make the company continue to be at the forefront of stone machinery. Relying on the advantages of strong industrial clusters, the company provides customers with free one-stop solutions for the stone industry (granite), including mining planning guidance, technical consultation, technical output, equipment procurement, processing, construction guidance, etc. As long as you invest in the stone industry, we provide you with a series of professional services.
