Mono Layer Rotary Die Double Rewinder HDPE LDPE LLDPE Film Blowing Machine

Product Description

Mono Layer Rotary Die Double Rewinder HDPE LDPE LLDPE Film Blowing Machine
The Film blowing machine is used to blow the plastic films like LDPE (low density polyethylene), HDPE (high density polyethylene) and LLDPE (linear low density polyethylene) into bubble film. Its products are widely used to pack fruit, food, clothes, textile, like garbage bags and vest/T-shirt bags, shopping bags and daily necessities and other industrial products.

Film blowing machine features:
Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment
Heaters: stainless heaters

Film blowing machine control Panel
1. Temperature of barrel and die head controlled by digital temperature controller
2. Inverter controls main motor driving speed and film taking up motor running speed
3. Electronics used are all Chinese top brand
4. Current meters and Voltage meters show the working state of motors
5. Small fan installed to avoid high temperature caused by long time running
Main Technical Parameters:

MODEL	RL-CM/65EZ
SUITABLE MATERIAL	HDPE LDPE LLDPE
FILM WIDTH	600-1200mm
FILM THICKNESS	HD: 0.01-0.08mm LD: 0.015-0.1mm
MAX.EXTRUSION OUTPUT	20~100kg/hr
SCREW DIAMETER	Φ65
SCREW L/D LENGTH	30:1
SCREW MATERIAL	SACM-645/38 CRMOALA
CYLINDER MATERIAL	SACM-645/38 CRMOALA
CYLINDER COOLING	250W×3 sets
DRIVING MOTOR	22Kw
TEMPERATURE CONTROL FOR SCREW	3 heating zones
AVERAGE POWER-CONSUME	25Kw/hr
TYPE OF DIE: FIXED DIE
DIE SIZE	Φ220
CENTER STEADY STICK	2
TEMPERATURE CONTROL FOR DIE	2 heating zones
TEMPERATURE CONTROL FOR FILTER	1 heating zone
AIR RING	1 set
AIR BLOWER	3 Kw
TAKE-UP UNIT
ROLLER WIDTH	φ165×1300mm
EFFECTIVE WIDTH	1200mm
TAKE-UP SPEED	10-80m/min
TAKE-UP MOTOR	1.5Kw
HEIGHT ADJUSTABLE TYPE	700mm
WINDING UNIT: DOUBLE REWINDER
TYPE	SURFACE FRICTION TYPE
WINDING MOTOR	1.5Kw
WINDING SPEED	10-100m/min
OVERALL DIMENSION(L×W×H)	5.3×3.5×5.5m

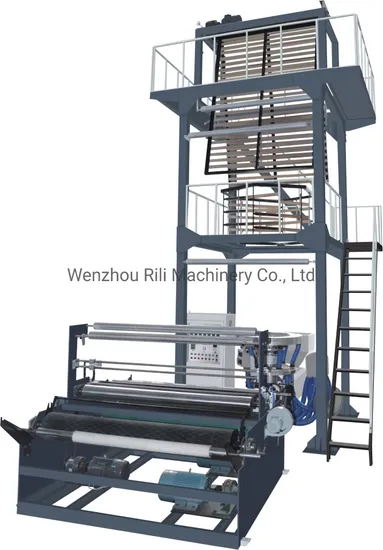

Machine Pictures:
Loading Pictures:

---
