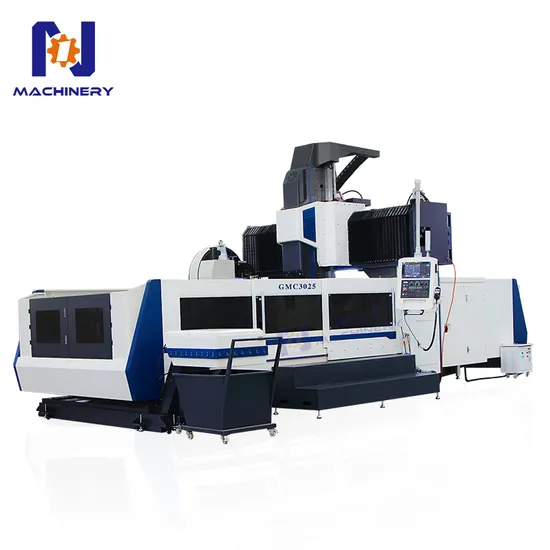

Heavy Duty Gmc3025 Fresadora CNC PARA Metal Machining Center CNC 4 Axis 3 Meter CNC Gantry Machining Center

Product Description

Product Description
Main configuration: BT50 Taiwan 6000 RPM spindle
Taiwan hiwin 3 axis roller linear rails
Taiwan hiwin screw
Taiwan OKADA 30 -disc-atc
Electrical cabinet cold air exchanger
Schneider electricals
Optional high precision five-axis Product Parameters

Main Technical Parameters		GMC3025	GMC4025	GMC5025	GMC6025
Work table size (width × length) (mm)		2300×3000	2300×4000	2300×5000	2300×6000
Stroke in the moving direction of the table (X-axis mm)		3000	4000	5000	6000
Stroke in the moving direction of the spindle carriage (Y-axis mm)		2700(side stroke 3050)	2700(side stroke 3050)	2700(side stroke 3050)	2700(side stroke 3050)
Stroke in the up and down movement direction of the spindle (Z axis mm)		1000	1000	1000	1000
Gantry width (mm)		2700	2700	2700	2700
Gantry is too high (mm)		1400	1400	1400	1400
Distance from spindle end face to work table (mm)		340-1340	340-1340	340-1340	330-1330
Table T-slot (number - size x spacing)		11-28×200	11-28×200	11-28×200	11-28×200
Spindle Specifications (Model/Installation Diameter)		BT50/Φ210	BT50/Φ210	BT50/Φ210	BT50/Φ210
Spindle transmission mode	belt	Speed 6000r/min	Speed 6000r/min	Speed 6000r/min	Speed 6000r/min
		the transmission ratio is 1.5:1;(optional 1.5:1)	the transmission ratio is 1.5:1;(optional 1.5:1)	the transmission ratio is 1.5:1;(optional 1.5:1)	the transmission ratio is 1.5:1;(optional 1.5:1)
	ZF deceleration + belt (optional)	The speed is 6000r/min and the transmission ratio is 4:1;	The speed is 6000r/min and the transmission ratio is 4:1;	The speed is 6000r/min and the transmission ratio is 4:1;	The speed is 6000r/min and the transmission ratio is 4:1;
	Gear Head (Weimars)	speed 6000r/min, Transmission ratio 4.4:1	speed 6000r/min, Transmission ratio 4.4:1	speed 6000r/min, Transmission ratio 4.4:1	speed 6000r/min, Transmission ratio 4.4:1
Rapid traverse feed rate (m/min)		10	10	10	10
Cutting feed rate (m/min)		6	6	6	6
X, Y, Z axis ball screw specifications/pitch		X:8020, Y:6316, Z:5010	X:8020, Y:6316, Z:5010	X:8020, Y:6316, Z:5010	X:8020, Y:6316, Z:5010
X, Y, Z axis guide rail specifications / number of sliders		X axis: roller guide 55/10;	X axis: roller guide 55/14;	X axis: roller guide 55/14;	X axis: roller guide 55/14;
		Y axis: roller guide 55/4;	Y axis: roller guide 55/4;	Y axis: roller guide 55/4;	Y axis: roller guide 55/4;
		Z axis: rectangular slide	Z axis: rectangular slide	Z axis: rectangular slide	Z axis: rectangular slide
X, Y, Z axis servo motor transmission mode and transmission ratio		X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive 2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)	X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive 2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)	X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive 2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)	X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive 2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)
Spindle motor selection recommendation		22kW wide area motor	22kW wide area motor	22kW wide area motor	22kW wide area motor
X, Y, Z three-phase servo motor recommendation		≥ X:50N m; Y:40N m; Z:30N m (brake)	≥ X:50N m; Y:40N m; Z:30N m (brake)	≥ X:50N m; Y:40N m; Z:30N m (brake)	≥ X:50N m; Y:40N m; Z:30N m (brake)
Optical machine dimensions		6500x5130x4300	8535x5130x4300	10555x5130x4300	12420x5130x4300
(length × width × height) (mm)
Workbench load (t)		10	12	15	18
Light machine weight about (t)		34	39	44	51

Details Display

Optional 90 degree side milling head

OKADA tool magazine 30 pieces, chain tool magazine optional


Taiwan hiwin 3 axis roller linear rails Imported bearings.
The arm-type control console is more user-friendly.

Safety electrical components Quick plug as standard Make the machine performance better.
Quality Testing


Product packaging
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.






FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Domestic Market(65.00%),Western Europe(10.00%),Mid East(10.00%),Africa(3.00%),South America(2.00%),Eastern Europe(2.00%),South Asia(1.00%),Eastern Asia(1.00%),North America(1.00%),Oceania(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southeast Asia(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Numerical Control Machine, Metal Cutting Machine Tool, Metal Forming Machine Tool, Machining Center, CNC Lathe
4. why should you buy from us not from other suppliers?
We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,JPY,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
