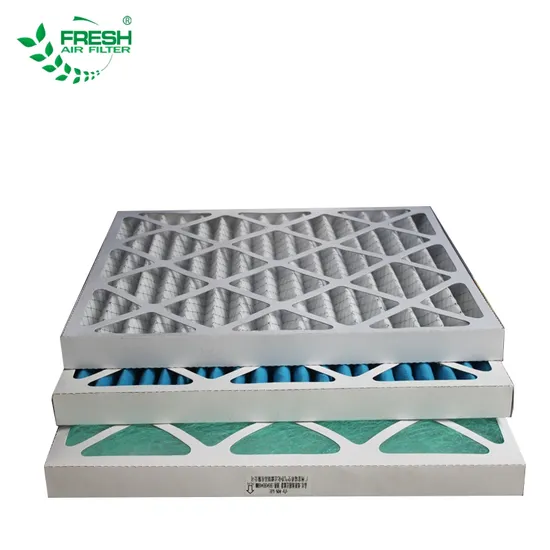

Cardboard Frame Folded Panel Filter

Product Description

Disposable Primary-efficiency Panel Air filter (G3/G4/F5)

Features:
-Low air velocity resistance
- High Dust capture capacity
- Economic
- Big filtration coverage
Application :
Pre-filter and foreign material filtration in commercial and industrial ventilation systems
1) Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection.
2) Primary filtration of central air conditioning system.
3) Pre-filtration at the inlet of Air purification equipment.
4) Pre-filtration in a medium filter.
5) Primary filtration or secondary filtration in a filter system.
6) Glass fiber plank pre-filter in Ventilation system for outdoor fire-proof and high temp resistance working condition.
Material :
1) Filter material :polyester fiber cotton ,polyester fiber filter cotton ,glass fiber filter cotton.
2) Support structure: galvanized mesh. aluminum mesh ,stainless steel mesh ,spray plastic mesh.
3) Outer Frame:galvanized steel frame/Aluminum Alloy frame/stainless steel frame/paper frame.
Technical parameters:
1. Filter Grade: G2,G3,G4 (En779),EU2,EU3,EU4(EUROVENT).
2. Filter object: Particles≥ 5 μm.
3. Filtration Efficiency :75% ,85%,95% (ASHRAE52.1-1992).
4. Humid Tolerance (relative humidity):less than 100%RH.
5. High Temperature Resistance: Polyester fiber is less than or equal to 100ºC ,glass fiber is less than or equal to 300ºC.
6. Instantaneous Temperature Resistance: Polyester fiber is less than or equal to 120 ºC ,glass fiber is less than or equal to 350ºC.
7. Fiber class according to EN779: 2012: G3,G4,F5 ( ASHRAE 52.2-2007:MERV5,MERV 8.MERV13)
Specification:

Model	Dimension			Pleats Number	Air Flow Rate / Initial Pressure Drop
	H(mm)	W(mm)	T(mm)		(m3/h / Pa)
FRS-ZDY-25	595	595	25	16	1700/20	3400/70
	290	595		8	850/20	1700/70
FRS-ZDY-46	595	595	46	16	1700/20	3400/70
	290	595		8	850/20	1700/70
FRS-ZDY-96	595	595	96	10	1700/20	3400/70
	290	595		5	850/20	1700/70
Remarks: Other specifications can be customized

Product Display:
WHY CHOOSE US?
1. We have specialized in the export of air filters for over 14 years.
2. We have our own factory and brand.
3. We provide OEM and ODM service ,sample production and service according to your demand.
4. The dimension can be customized.
5. Our company have passed ISO9001 2008 and ISO9001 2015, ISO14001, ISO45001, ISOTS16949-2009.
6. The products have passed SGS certification, CE certification, UL900 certification.
7. With independent R&D and design capabilities.

---
