Hot Sale Rubber Molding Press Rubber Curing Press Rubber Making Machinery

Product Description

Hot Sale Rubber Molding Press Rubber Curing Press Rubber Making Machinery

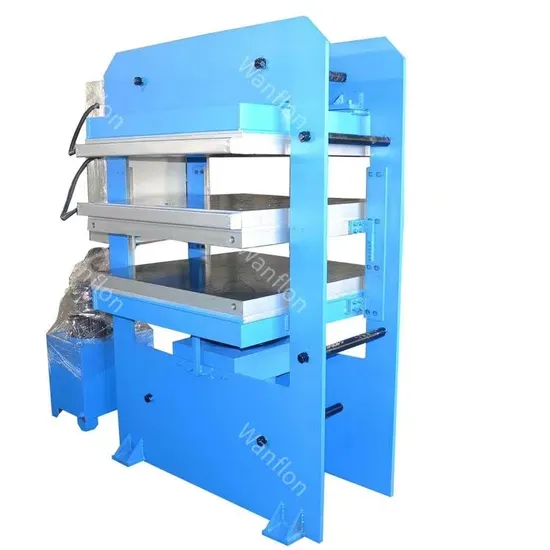

Product Description 1. The Rubber Wristband Making Machine is composed of press plate, up and down platform, piston stroke, hydro-cylinder, hydraulic station and pillar column.
2. The hot plates are obtained by 35# steel plates after normalizing handling and then adopting double scale rolling.
3. Up and down platforms adopts Q235 steel plates. In order to guarantee the make precision, it is applied with automatic cutting baiting, mechanical slicer producing welded groove, carbon dioxide gas shielded welding. It all adopts alloy welding wire welding and after welding takes whole enter into stove to go on the hot treatment to remove the welding stress exhaustively. And then go on mechanical producing to guarantee it won't become deformed.
4. The cylinder's material is QT500-7 and HT200 for piston. Moreover, we can also manufacture the cylinder with ZG270-500 material and piston with cold hard chilled alloy cast iron.
5. And sealing structure applies the combined structure with double sealing ring and one dustproof ring to guarantee longer service. The piston rise and fall under the working hydraulic pressure. When the piston fall(plates starting to work) depending on the weight of the plates, platform and piston to drive the hydraulic oil flowing back oil stock container to realize falling purpose.
6. The assembled oil pump is the source of power of press which supplies working oil with certain pressure. The oil enter into cylinder through controlling valve and move the hand shank to different places to realize the rising and falling of the piston.
7. The electrical controlling system adopts automatic and semi-automatic controlling method. When adopting automatic controlling way, it can be switched into manual control.

Parameters

Type	XLB-DQ1200×1200×2	XLB-DQ1300×2000×1	XLB-Q1200×2500×1	XLB-Q1500×2000×1	XLB-Q2000×3000×1
Total Pressure(T)	315t	560t	750t	1000t	1800t
Plate Size (mm)	1200×1200	1300×2000	1200×2500	1500×2500	2000×3000
Daylight(mm)	200	400	400	400	400
Layer NO.	2	1	1	1	1
Piston Stroke(mm)	400	400	400	400	400
Plate Pressure(MPa)	22	21.5	25	33.5	30
Main Motor (kw)	3	8	9.5	11	26
Overall Dimension(L×W×H)(mm)	1685×1320×2450	2000×1860×2500	2560×1700×2780	2810×1550×3325	2900×3200×2860
Weight(kg)	9500	17000	20000	24000	66000

We can design various rubber wristband making machine according to your requirements.

---
