Am-22A Rice Field Cultivation Paddy Farm Boat Tractor

Product Description

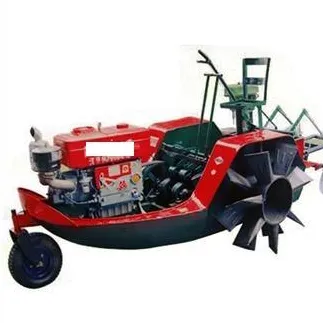

Paddy field tractor Small boat tractor paddy tire farm boat tractor for rice field cultivation
Introduction:
This boat tractor is our new product, the machine frame is boat shaped, a machine frame is arranged in the boat body; a riser at
the front end of the machine frame, a gear box on the machine frame positioned at the tail of the boat; a cultivation roller
on the gear box; an operating lever at the dynamic force side of the gear box; an armrest is fixed at the front end of the
gear box; a left and a right separating operating levers on the surface of the gearbox; a mudguard on the gear box in a straddling
way; a seat penetrates through the mudguard and is fixed on the gear box; the dynamic force is transferred to a belt pulley
through a belt and to the gear box so as to drivingthe cultivation roller. The boat tractor can be suitable for the paddy field
cultivation of different properties in mountains, plains, hills and lake districts.
Basic implements for this machine are: disc plough, fertilizer spreader, rake and roller.
Main Technical Parameters:

Model	AM-22A
Working efficiency	0.8-1ha./h
Engine	ZH1115G2 diesel
Power	16.2kw( 22HP), 2200rpm
Weight	760kg(with power and disc plough)
Wheel track	1250mm
Wheel base	1670mm
Driving wheel vertical amplitude modulation	300mm
Guide wheel radius	200mm
Suspension lifting device	Ratchet pendulum rod disc control
Power clutch control device	Belt clutch
minimum turning radius	1.75m
Min ground clearance	145-245mm(adjustable)
Diameter of disc plough	205mm
Min working depth	180mm
Min working width	480mm
Diameter of rubber driving wheel	375mm
Diameter of water paddy wheel	365mm
Max working speed	3.5m/s
Working efficiency	0.53hm2/h
Oil consumption	180±20g/h
Walking speed	20-30km/h, max.40-50km/h
Overall dimension	3200x1500x1400mm
Packed size	2600x1600x1200mm
Cultivating depth	230±78mm
Capacity of fertilizer tank	60L
fertilizer apparatus	gravity type
Fertilization line number	6 lines
Distributing regulation mode	Rod type gate

Company Information:
WUHAN ACME AGRO-TECH CO., LTD. is located in WUHAN city, which is the biggest
beautiful lake city in middle China,Near Yangtze River with developed science and technology
and convenient transportation.ACME is a global integrated agricultural machinery supplier and
was named as the Fortune Global 500 suppliers by ****** in 2012'.
ACME has its own brand-ACME,and it's the membership of UNGM,UNDP-SS-GATE, CCPIT,CAJCCI
(China Africa Joint Chamber of Commerce and Industry)HBICC(HUBEI International Chamber of Commerce)
HEBA(HUBEI E-BUSINESS Association), WFIA(Wuhan food Industry Association).
ACME focus on agricultural machinery, food machinery, bio-energy, agricultural engineering
and food engineering etc. After many years' of development,ACME already had customers
from all over the world like North America,South America,Southeast Asia,Africa,Oceania,
Mid East,East Asia,Central America etc..Also we have contracted three sets of rice mill plant
for UNDP agriculture project in Benin and projects for others UN agro & food engineerings.
ACME warmly welcome friends from all over the world to visit our company and cooperate
on the basis of long-term mutual development.

---
