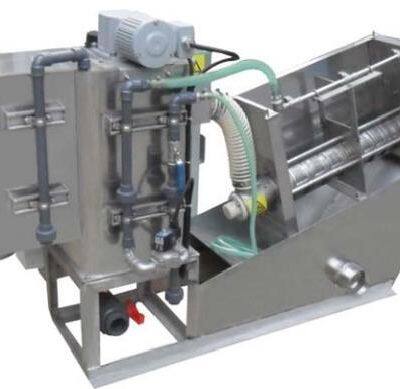

Stacked Sludge Dewatering
Product Structure
The main part of the dehydrator is a filter device
that a screw runs through the stacked fixed rings
and moving ring
The small gaps between fixed rings and moving
ring can filter the sludge,and the lumen between
screw and rings is filled with polymer grains.The
moving ring transfers the sludge to the end of the
machine with pressure and extruds sludge cakes.
The running of the screw drives the moving ring
to clean the gaps and avoid jam.
Product Application:City mixed raw sewage、Food &beverage industry、Chemical industry、Stone &mine sewage、Leather &tannery sewage、Paper&pulp sewage、Elecro-plating sewage、Pringting &dyeing sewage、Power plant、Petrochemical industry
Product Features
1.Suitable for sludge treatment of high/low consistency.
2.There is no need to worry about jam up.Reduce the cleaning water consumption.
3.The electrical cabinet,disposal tank and dehydrator are integrated, reducing the covering area and brings convenience to installment.
4.The dehydrator is enclosed working,reducing the bad smell and improving the working environment.
5.Automatically working for 24 hours,reducing the labor strength of workers
6.The slow running speed of screw shaft reduces the power consumption and noise.
7.It is made with stainless,extending the service life.
8.It is convenient for daily maintenance.
Product Parameters
|
Treating Capacity
| 3~300(DS-kg/h)
|
Power Consumption
| 0.2~6.0kw/h
|
Cleaning Water Consumption
| 24~216L/h
|
Macromolecule Polymer Addition
Rate
| 2.0~4.0(kg/Ton D.S)
|
Water Pressure
| 0.2~0.3MPa
|
Distance of Outlet Exit to Gound
| 215~500mm
|
Replacement Period of Screw Axis
|
3~11 year
|
Replacement Period of Moving Ring
| 1~4 yea
|
