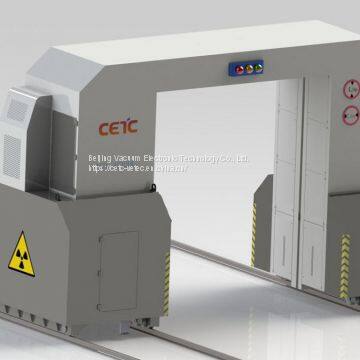

BVE-6000G Vehicle Inspection System：
BVE-6000G vehicle security inspection system is used for trucks, containers and large vehicles’ security checking. It has many advantages like: high inspection efficiency, intelligent operation, safety and reliability and so on. It is an essential security inspection equipment for customs, ports, military bases and key sections. By using the X-ray penetrating scanning, the system can identify contrabands like weapon, explosives, drugs, contrabands etc. which are hidden in the interior of the trucks, containers, etc. So that contrabands can not be hidden anywhere.
High Efficiency:High-speed vehicle transmission, high-speed imaging, inspection pass rate up to 150 vehicles / hour.
Intelligency: The vehicle could realize fast scanning driving through and have automatic alarm function when detecting out threat items or suspicious objects.
High Safety: Automatically avoid drivers’ cabin and realize 100% security checking.
With these features of high efficiency, intelligent operation and high safety etc. BVE-6000G could be widely used in customs, border control, ports, logistics, transportation hubs, highway checkpoints and other inspection fields.
Basic Parameters
|
Tunnel size:
| 4.0（W）× 4.7（H）[m]
|
Max. Vehicle Size could be inspected
| 3.0（W）× 4.6（H）[m]
|
Scanning Speed
| 15 km/h
|
Pass Rate
| 150 vehicles/hour
|
X-Ray Generator and Detector
|
Linear Accelerator
| 6/3 MeV
|
Beam Direction
| From Side
|
Detector
| L shape high-sensitivity detector
|
For Vehicle Inspection System: Customized Design Provided!
>>
