| US$3,000.00-50,000.00 | 1 Set (MOQ) |

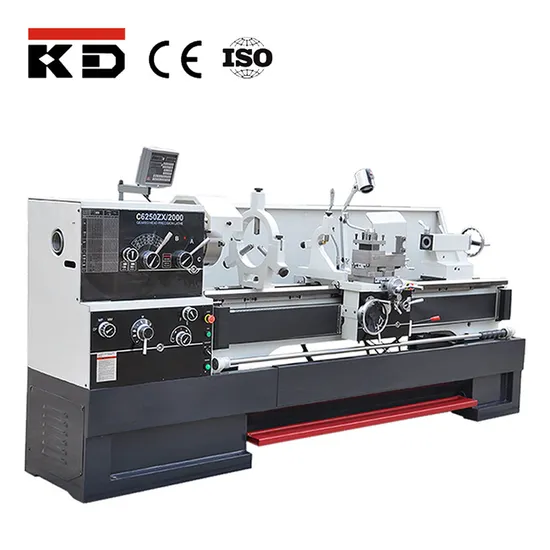

| MODELS | GH-1440ZX EVS GH-1460ZX EVS | GH-1640ZX EVS GH-1660ZX EVS | GH-1840ZX EVS GH-1860ZX EVS GH-1880ZX EVS | GH-2040ZX EVS GH-2060ZX EVS GH-2080ZX EVS |
| CAPACITY | | | | |
| Max. swing over bed | 360mm | 400mm | 460mm | 500mm |
| Max. swing over cross slide | 200mm | 250mm | 290mm | 330mm |
| Max. swing over gap | 600mm | 660mm | 700mm | 740mm |
| Distance between centers | 1000/1500mm | 1000/1500/2000mm | ||
| Max turning length | 850/1350mm | 850/1350/1850mm | ||
| Bed with | 336mm | |||
| HEADSTOCK | | | | |
| Spindle bore | 80mm | |||
| Spindle mount | D1-8 | |||
| Taper bore of spindle | MT-7 | |||
| Steps of spindle speed | 2 | |||
| Range of spindle speed | 40~400, 200-2000rpm | |||
| GEARBOX | | | | |
| Range of longitudinal feeds | 0.04-2.46mm | |||
| Range of cross feeds | 0.02-1.23mm | |||
| Number of inch threads | 61 | |||
| Range of inch threads | 1-5/8 - 72 T.P.I. | |||
| Number of metric threads | 24 | |||
| Range of metric threads | 0.5-20mm | |||
| Number of D.P threads | 45 | |||
| Range of D.P threads | 96-3 1/4D.P | |||
| Number of module threads | 20 | |||
| Range of module threads | 0.25-10M.Pmm | |||
| CARRIAGE | | | | |
| Max. tool size | 25x25mm | |||
| Max. compound slide travel | 130mm | |||
| Max. cross slide travel | 280mm | 310mm | ||
| TAILSTOCK | | | | |
| Tailstock sleeve travel | 130mm | |||
| Taper in tailstock sleeve | MT-5 | |||
| OTHERS | | | | |
| Main motor | 5.5kw (7.5HP) | |||
| Net weight | 2250/2550kg | 2300/2600kg | 2350/2650/2900kg | 2750/3000/3250kg |
| Overall dimension (LxWxH) | 2310/2810 x1050x1310mm | 2310/2810 x1050x1340mm | 2310/2810/3320 x1050x1370mm | 2310/2810/3320 x1050x1390mm |
