The MBP series of screening plant provide a wide and precise selection of the final product size to be screened. It is mainly used to match the coarse crushing module of jaw crusher and the medium and fine crushing module of cone crusher to screen and classify the crushed products.
PRODUCT PARAMETERS
Project
| Device Name
| Models and Specifications
| Power (kW)
| Amount
|
|
3YA2160 vibrating screen
| vibrating screen
| equipment
| 3YA2160
| /
| 1
|
triangle belt
| Standard
| /
| 5
|
motor
| Standard
| 30
| 1
|
modular steel structure
|
| Standard
| /
| 1
|
main conveyor
| Specification
| B1200*11.5m
| 11
| 1
|
drive mode
| electric drum drive
| /
| 1
|
underscreen conveyor
| Specification
| B1000*8.5m
| 7.5
| 1
|
drive mode
| electric drum drive
| /
| 1
|
large material conveyor
| Specification
| B650 * 7m
| 5.5
| 1
|
drive mode
| electric drum drive
| /
| 1
|
medium material conveyor
| Specification
| B650*9.5m
| 5.5
| 1
|
drive mode
| electric drum drive
| /
| 1
|
medium and fine material conveyor
| Specification
| B650*9.5m
| 5.5
| 1
|
drive mode
| electric drum drive
| /
| 1
|
Electrical System
| Electric control cabinet
| Host soft start, electrical components Chint
| /
| 1 set
|
| Belt conveyor folding cylinder
|
| /
| 1 set
|
Hydraulic Pumps, Valves, Stations and Tubing Accessories
|
| /
| 1 set
|
Total power 65KW
|
Special Design of different models of the mobile crushing plant will be available upon request.

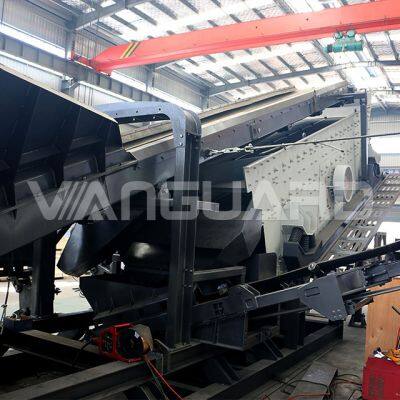

PRODUCT EXHIBITION
PRODUCT ADVANTAGES
Excellent screening ability
When the circular vibrating screen is working, the screen box vibrates strongly, which can reduce the phenomenon of material blocking the screen holes, so that the vibrating screen has high production efficiency and screening efficiency.
Innovative and optimized design
This series of screening plants is designed with an assembled lower discharge chute, which is convenient for transportation and installation. The front sliding-out discharge chute is designed during production, which makes the maintenance of the screening machine convenient.
Long service life
A flexible coupling is used when the vibrating screen motor and the exciter are connected, which can improve the service life of the equipment and reduce the impact force of the motor.
Lower Transportation Cost
It is unnecessary to carry the materials from one site and crush them in another one which can greatly reduce the transportation cost for off-site crushing.
PRODUCT APPLICATION
Processed Material:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc
CUSTOMERS' SITES
Packaging and Shipping
view more >>Recommended by seller
Quarry Cone Crusher Symons Cone Crusher For Rock Stone Crushing$34,000.00 / set1 set
High Efficiency Crushing Plant Mobile Stone Concrete Jaw Crusher Price$25,000.00 - $74,000.00 / set1.0 set
50-100tph Capacity Mobile Stone Crusher Aggregate Rock Crushing Plant For Sale$119,600.00 / set1 set
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, mineral processing machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
