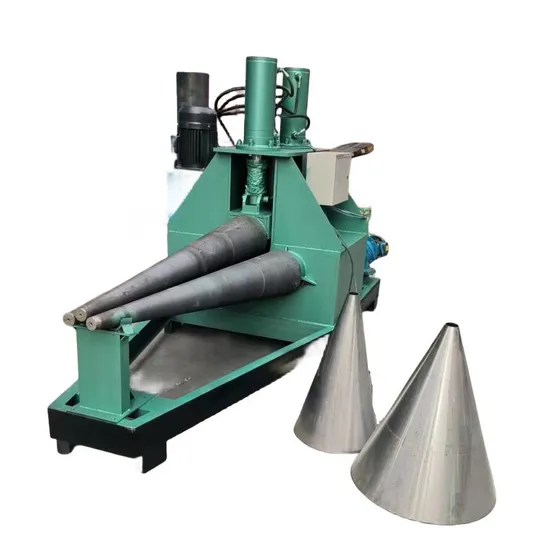

Pre-Bending Metal Hot Roll Machine Hydraulic Drive Tapered Plate Coiling Tool

Product Description

The working process of the cone rolling machine mainly has the following three steps,
In the first step, the workpiece is fed into three rollers. One roller is above the workpiece, called the upper roller, and two are below the workpiece, called the lower roller. This is a three-roll plate rolling machine
The second step, the roller shaft moves, one is that the upper roller is pressed down, the lower shaft or side shaft is stationary, the second kind of lower roller or side roller moves upward, and the upper roller is stationary.

The upper roller of the roll cylinder workpiece is parallel to the lower roller when it is pressed down, and the upper cone of the tapered cylinder workpiece is skewed to the lower roller when it is pressed down;
The third step is to reverse the workpiece through the reversing motion of the moving roller, and to ensure that the amount of depression of the upper roller is unchanged, so that each generatrix of the workpiece has the same curvature or curvature distribution, and becomes a cylinder and a cone.

Model	3*500	4*1000
Roller big head diameter	170mm	220mm
Roller small head diameter	20	52
Roller length	500mm	1000mm
Motor power	3*750W	3*1000w
Oil station power	3kw	3kw
Cylinder diameter	110mm	140mm
Processing range	Processable plate thickness stainless steel 2mm, Q235 plate 3mm	High-frequency quenching treatment of roller Machinable plate thickness stainless steel 3mm, Q235 plate 4mm
Size	1900x1500x1520mm	2600x1200x1500
weight	800kg	1300kg
