Free Shipping China Famous Brand Manufacturer Retroexcavado Carregador 3cx Compac Tractor Small Wheel Backhoe Loaders with Euro5 Engine Cheap Price for Sale

Product Description

1. Luxury enlarged cabin, luxury seat , Cabin with hydraulic forward tilting function, easy maintenance.
2. The top canopy of the cabin can be removed for container delivery.
3. Streamline enlarged fuel tank with tilting oil port, easy to refill
4.Hydraulic componentes use famous brand,with long working life and stable performance;oversize water tank,high-temperature resistant;
5. Large radiator suitable for very hot area.
6. Hydraulic steering system , easy to control.
Backhoe Loader Standard Configurations:

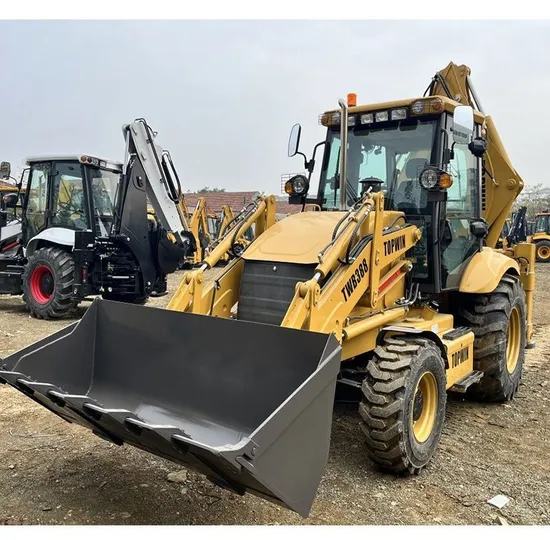

TB388 backhoe loader
Loading bucket 1cbm,
Backhoe bucket 0.3cbm,
Yuchai YC4A105Z-T20 engine,
Fixed shaft power shift transmission, 2F/2R,
Dry axle, 4x4 drive,
Pilot control,
Cabin without Air-conditioning,
One unit by 1x40feet container
Optional:
Cummins 4BTA3.9-C100 (74KW) engine,
AC,
LCD display instrument panel,
Carraro transmission
Backhoe Loader main features:
The integral body frame with more stable operating condition, more suitable for digging work.
The excavating working structure is side shift type, higher strength, good structural stability; and the loading end adopt eight -bar linkage mechanism.
The adopts larger section, improving the rigidity and deformation resistance.standard excavator bucket with strengthened and thicker steel.
Rear and front body, with small rotary radius,hydraulic steering,comfy and convenient to operate. heavy duty hinge joint and hydraulic pipe protection.
Lifting enlarge operator cabin with secure glass and wide field, comfortable steering wheel, high quality seat and suitable joystick control.
Product Description
1 Hydraulic walking , with Chinese best torque converter , contiuously variable transmission;Service brake is air over hudraulic discc brake on 4 wheels, with blast pump.
2. It have all the functions of 180°wheel excavator and the same wheel loader.
3. Excellent operating performance with high working efficiency
4. All kinds of attachments are optional,such as snow blade,road sweeper,hydraulic hammer,grapple, pallet fork, to meet different customer's requirement.
5.Can equipped with ROPS cabin as optional.
6.Can equipped with Air conditioner,break hammer,4in 1 bucket,6 in 1 bucket,quick hitch and pre-breaking line as optional.
Product Parameters
Backhoe loaders specifications:

Transport Dimension	Overall Operating Weight	8200KG
	mm L*W*H	6230×2365×3752
	Wheel base	2200mm
	Min. Ground Clearance	300mm
	Bucket Capacity	1.0m3
	Breakout Force	38KN
	Loading Lifting Capacity	2500KG
	Bucket Dumping Height	2650mm
	Bucket Dumping Distance	1025mm
	Digging Depth	52mm
	Backhoe Capacity	0.3 m3
	Max. Digging Depth	4085mm
	Swing Angle of Excavator Grab	190 degree
	Max. Pulling Force	39KN
Engine	Model	YC4A105Z-T20
	Rated Power	75KW
Steering System	Model of Steering Device	BZZ5-250
	Steering Angle	±36 degree
	Min. turning radius	6581mm
	Pressure of the system	12Mpa
Axle	Manufacturer	Feicheng Axle Factory
	Main Transmission Type	Double Reduction
	Final Reducer	Single Stage Final Reducer
	Rated Loader of Axle	4/18.5t
Torque Converter	Model	YJ280
	Type	Single-stage Three Elements
	Max. Efficiency	84.40%
	Inlet Pressure	0.4Mpa-0.55 Mpa
	Outlet Pressure	1.2Mpa-1.5 Mpa
	Cooling Method	Oil-cooling Pressure Circulation
Gearbox	Type	Fixed Shaft Power Transmission
	Oil Pressure of Clutch	1373Kpa-1569 Kpa
	Gears	Two Gears Ahead, Two Gears Astern
	Max.Speed	22Km/h
Tyre	Model	14-17.5/19.5L-24
	Pressure of Front wheel	0.22 Mpa
	Pressure of Back Wheel	0.22 Mpa
Brake System	Service Brake	Air Over Oil Caliper Brake
		External Type
		Self-regulation
		Self-balance
	Emergency Brake	Operation Power Implementing brake
		Manual Operation Power Terminating Brake
Hydraulic System	Digging Power of Excavator Grab	46.5KN
	Digging Power of Dipper	31KN
	Bucket Lifting Time	5.4S
	Bucket Lowering Time	3.1S
	Bucket Discharge Time	2.0S

Attachments
Jack Hammer Or Breaking Hammer Or Breakers, Quick Hitches, Pallet Forks, Fork Frame, Auger Or Earth Drill,
Thumb Bucket,Excavator Buckets,Sweeper,Grapple,Ripper,Rake,Jaw Bucket,
Shovels,Hand Held Tools,Compactor, Patch Planer Extending dippers
Packaging & Shipping
2 units of TWB388 backhoe loaders can be loaded in one 40feet HQ container
workshop
Certifications
FAQ Q: Why TOPWIN?
A: With 15 years' exporting experience,TOPWIN is professional Backhoe Loader provider, that manufactures high quality Backhoe Loader.
What we can provide:
Quality machines.
More competitive prices.
More timely and effective service.
Q: Can I test the machine before order?
A: Yes, we have dealers in Brazil, Australia, Slovenia, Sweden, Croatia, Poland, Serbia, Zambia, Mozambique, South Africa, Syria, etc. Please tell me your detailed address, then I would like to recommend the closest customer for you, then you could go to test.
Q: What is your delivery time?
A: The delivery time is around 20 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we accept 30% deposit by TT for production, 70% balance by TT before shipping. Or by sight LC.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.
Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.
Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 5 working days. We have professional after sales department to support for you at any time.

---
