Product Description
Product Description
SpecificationsAdhesive sticker cutting machine
1. The max width: 500mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
DP-500CQ Adhesive sticker cutting machine
Functions:
This machine employs man- machine + PLC system equipped with pneumatic device,
adding import photoelectricity eyes and suck device, to avoid accumulative error. marking and cutting ,
Which will improve cutting efficiency, High precision, low loss, easy operation.
Application:
Sizing cutting for printed material,conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape,
nickel plate, PET,PC,PE insulation paper copper /aluminum foil and all kinds of adhesive tapes.
Model
|
DP-500CQ
|
Voltage
| 220/380V
|
Power
| 1.5HP
|
N.W.
| 280kg
|
GW.
| 300kg
|
Cutting Length
| 0.1~9999.9mm
|
Cutting Width
| 1~500mm
|
Measurement
| 1500x1190x1360mm
|
Features:
1. The max width: 500mm
2. Tolerence: 0.05mm, Precision: 0.1mm
3. Material thickness: 0.5mm-15mm
4. Kiss cut or cut through available
5. Under CE and ISO Certifications
6. Warranty for machine: 12months
7. Delivery time: 1-3days
8. Cut through for standard machine
9. Kiss cut is for optional
Characteristics:
1. This machine employs man-machine interface + PLC system equipped with pneumatic pushing device.
2. For half cutoff with multi-cut, full cutoff with one-cut.
3. Five different cutting length can be set.
4. Different cutting quantity and circulation time also can be set to improve cutting efficiency.
5. The cutting length is accurate.
6. Operation is easy.
7. Waste rate is low.
8. Manufacturing experience: 30 years
9. Export experience: 20 years
After-service:
1. Warranty for machines is 12 months
2. A promptly reply within 24 hours
3. Free usage training before delivering machines in factory

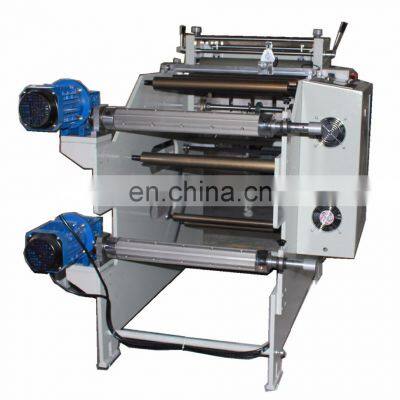

Pictures of this machine:
packing :
wooden case packing :
>>
