Plastic PET PVC Film Paper Cold Laminating Machine

Product Description

Product Description

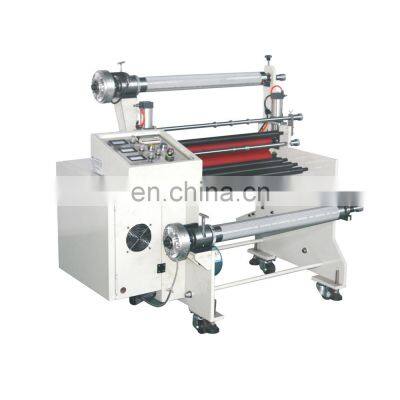

Plastic PET PVC Film Paper Cold Laminating Machine
Descriptions :
1.Magnetic powder control the unwind and rewind tension.
2.Frequency conversion is used for speed regulation of the main motor.
3.The cylinder control the rubber roller up and down.
4.Automatic meter counting,stable laminating,fast,high precision,low wastage,and easy operation.
5.Optional:1.Photoelectric tracking system to keep the unwind material in line.2.Slitting function.3.Hot laminating function.4.can make as your requirements.
Application :
Used for laminating industrial tape, electronic material, protective film, copper foil, aluminum foil, OPP, PP, PE, PVC, paper, cloth.etc.
Main technical data:

Model	DP-650
Max Feeding Width ( mm)	650
Unwinding Diameter ( mm )	400
Rewinding Diameter(mm)	450
Precision	±0.3mm
Total power	1.5kw
Inner Paper Core Diameter	3 inch
Voltage	220V 50HZ

Configuration:
Unwinding shaft : 3 inch inflatable shaft 3 pcs
Rewinding shaft : 3 inch inflatable shaft 1 pcs
Magnetic brakes : 3 set
Magnetic clutch : 1 set
Laminating motor: 1set
Laminating roller : 2 (PU material)
Air cylinder : 2 pcs

---
