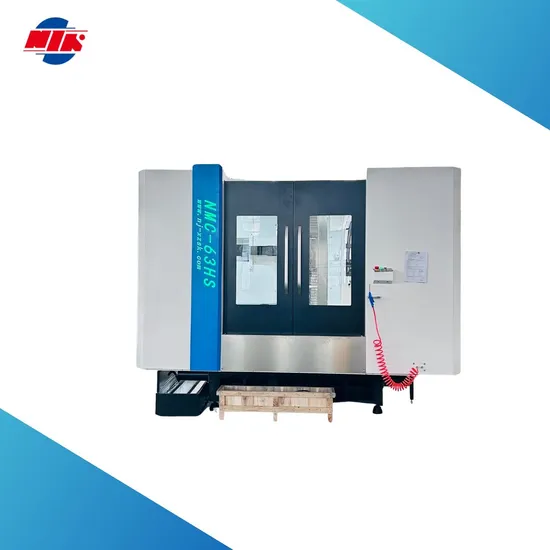

Horizontal Machining Center with High-Speed Automatic Workpiece Alignment for Faster Production Manufacturing Machine

Product Description

Horizontal Machining Center with High-Speed Automatic Workpiece Alignment for Faster Production


FEATURE
1. It adopts the internationally popular inverted T-shaped moving column overall bed structure, which has the advantages of high rigidity, good stability, and easy protection.
2. The main castings are made of high-grade high-quality cast iron, resin sand molding, and secondary aging treatment after rough machining to ensure the stability of precision.
3. Fully enclosed protection design, double-sided spiral chip removal structure, equipped with large-capacity cutting fluid tank and convenient machine cleaning air gun, optional chain plate type chip removal lifting device and chip storage car.
4. The standard BT50 ring spray spindle is equipped with an air curtain protection device to completely avoid the penetration of cutting fluid and dust; the spindle sleeve is cooled by circulating oil to ensure the accuracy of the spindle and prolong its service life.
5. Fast and reliable cam manipulator tool changing mechanism, with 30 standard configurations, and 40/60 chain tool magazines can be selected, and the tool discs adopt the two-way nearest tool selection method, which is fast, stable and reliable.
6. The oil-water separation structure design of the machine tool is equipped with a centralized lubricating oil recovery system, saving energy. About oil, protect the environment.
7 .The three-axis ball screw is pre-stretched with double supports to optimize the transmission rigidity and reduce thermal deformation.
8. Adopt FANUC latest 18.5/22/26kW wide spindle servo motor, with high torque synchronous toothed belt drive, so that the machine's low-speed heavy-duty cutting ability has been greatly improved (see spindle power torque output characteristics), the maximum output torque of the spindle can be up to 525Nm, and at the same time, the maximum spindle speed of 6,000r/min to meet the high speed and high precision machining requirement
Advantages: simple structure, maintenance-free, low noise, high speed, high torque at low speed (up to 525Nm in S3-15min ), calculated speed of 400r/min (i.e., 400r/min up to full power output), providing enough capacity to meet the conventional heavy-duty cutting on the basis of guaranteeing tell-tale machining.
ZF gearbox spindles are also available on request.
9. The three-axis feed drive adopts imported heavy-duty roller linear guides, and the preload is V3 level, with high load capacity and stable precision.
10. The rotary table adopts high-precision end gear positioning, which can provide 1°×360 bidirectional positioning turntable with high indexing and positioning accuracy. The CNC turntable (option) adopts high-precision double-lead worm gear (with adjustable gap structure) transmission mode, and the clamping and releasing of the worktable are realized by the oil cylinder.

PARAMETER
PARAMETER

Specification		NMC63HS
Worktable size (W×L)	mm	630×630
Table indexing number/pallet exchange time	Deg	0.001°
Table form (No.*screw hole)	mm	5-22*125T
Max.loading of worktable	kg	1500
Distance from spindle center to worktable	mm	70~970
Distance from the spindle front end to worktable center	mm	200~1120
Max. Workpiece swing diameter on worktable	mm	1100
X/Y/Z axis travelling	mm	1100/900/920
X/Y/Z guideway		XYHeavy Duty Linear Rolling Guide Z slide guideway
X/Y/Z quickly move speed	m/min	20/20/18
Max. Turning speed of turntable	r/min	6
Cutting feed speed	m/min	0.005~6
X/Y/Z/ turntable axis servo motor torque Power	Nm kw	27/27/36/20 3.0/3.0/3.0/2.5
Spindle motor power	KW	17.5KW
Spindle speed range	r/min	45~6000
Spindle torque	Nm	143/236
Tool magazine capacity/form	pcs	60 tool
Shank form		BT50
Max.tool weight	kg	18
Max. tool size (diameter/length)	mm	Φ115(NeighborhoodΦ200)/500
Tool change time (tool to tool) / tool change method	Sec	5 / Random
X/Y/Z axis position accuracy	mm	0.012/0.012(Two-way full course, according to Germany VDI/DGQ 3441standard test)
X/Y/Z axis repeat position accuracy	mm	0.008(Two-way full course, according to Germany VDI/DGQ 3441standard test)
Turntable position accuracy/repeat position accuracy	″	10″/5″
CNC system display	″	10″ /5 color (Closed-loop control required when selecting 0.001° CNC rotary table)
Air pressure	MPa.	0.5~0.7 (flow:800L/min)
Electricity demand	KVA	35 (three-phase AC 380V± 10%,50Hz± 1Hz)
Machine size (L×W×H)	mm	3850×3550×3200
Machine weight	kg	12100

FAQ

FAQ
Q1 A1	How can I choose the most suitable machines ? If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you. If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you.
Q2 A2	Where is our factory located? How can I visit there? Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
Q3 A3	How is the warranty? We will supply standard ports and accessories with our machine when shipment. Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge.
Q4 A4	Do you have a stock? Our Chinese market order is very good, we have many machines produce everyday and delivery everyday. Our fastest delivery time for 1~5 sets will be within one month.
Q5 A5	How about your quality? We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system. Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6 A6	Do you have professional engineers? Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
Q7 A7	What is the package? Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q8 A8	What's your main products of your company? We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
Q9 A9	What's the MOQ? One set. The big discount will start from three sets.
Q10 A10	What's the Payment Terms ? T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.
Q11 A11	What is the charge of installing and commissioning? Most of machines you can install well according to our drawing. For some machines, it need our technician to go to your local site and help you install and commission machines. At the same time, our technician will train your workers, it will table about 7~15days for different machines. The return air-tickets, accommodation, food, salary (USD200.00/day for each technician), etc will be born by the end-user.

---
