Hydraulic Application Magnetic Flowmeter Electromagnetic Flow meter water wastewater liquid

Product Description

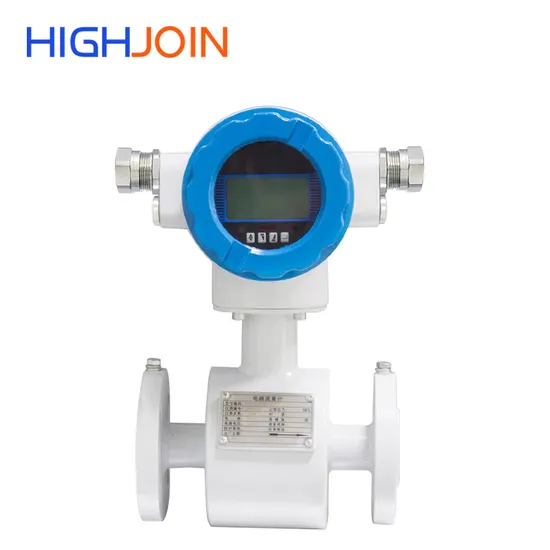

HFM100 Electromagnetic Flowmeter is made of a sensor and a converter. It works base on Faraday's law of electromagnetic induction to measure conductivity of liquid or liquid-solid medium. It requires the conductivity should be greater than 20µS/CM (the conductivity of tap water and raw water is 100-500µS/CM ). It can be used for many mediums like acid, alkali, saline solution, paper pulp, ore pulp etc but the medium can not much conclude ferromagnetic substance or a mass of bubbles. Product Features

High quality converter, clear LCD display screen, display instantaneous flow and cumulative flow respectively Advanced excitation technology, brief excitation circuit with stability and reliability Pioneering fuzzy algorithm technology applies to measurement of electromagnetic flowmeter with the performance of artificial intelligence Empty and full pipe measurement technique to avoid false alarms With low conductivity measurement function Prompt response design for high resistance, undistorted collection of weak signals and prompt reaction for flow change, the range rate can achieve 100:1 Various optional output communication interfaces

Product Parameters

Aperture Diameter	DN10-DN2400
Flange	GB/T9119-2000 standard carbon steel by default (stainless steel optional),other standards can be customized
Rated Pressure Grade	DN10~DN600, 1.0 1.6 2.5 4.0MPa; DN700~DN2000, 0.6 1.0 1.6MPa
Lining Material	Chloroprene Rubber (CR), Polytetrafluoroethylene (PTFE), Polyurethane Rubber (PU), Polyethylene (PE), PFA, etc.
Electrode	Stainless steel 316L, Hastelloy (HB and HC), Titanium, Ttantalum, Platinum
Ingress Protection	IP68, IP65 for Customized
Accuracy Grade	0.5 grade
Medium Temperature	Sensor: -25~180ºC, Transmitter: -10~80ºC
Measuring Flow Velocity	Less than 15m/s
Supply Voltage	24VDC, 220VAC
Output	Current 4~20mA, Pulse, Frequency, RS485, HART, Profibus-PA

Ordering Guide
Other Recommendations

Gear flow meter(high viscosity medium suitable)	Thermal flow switch

Company Profile
FAQ
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
4. Q: What is lead time of your product?
A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.
5. Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.
6. Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.

7. Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.
8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.

---
