Features
Track Temperature (-40°C to 80°C)
Track Humidity (0 - 100%）
Battery operated, place it anywhere
Wireless transmission distance is more than 1600 feet in open field
Easy 3 minutes setup
Receive alarm sound and email alert
Set high-low threshold value for alert
Monitors /alerts battery levels
Monitors /alerts if wireless signal lost
Unlimited history of readings for 6 months
Monitor every 5 mins default,customized in factory
No fees or subscription
Free software
Alert multiple users
One concentrator can work with more than 100pcs sensors
Requires 1/2 x AA lithium batteries (included)
Battery life: 5+ Years @5mins data sending time
Manufacturing,support OEM/ODM service
Product parameter
Operation process
XZ-TH10 operation process:
Switching different operation modes according to using way. The modes as following:
1） Sleeping mode: Sensor no working, no transmission, and sleeping with low consumption totally.
2） Trigger mode: Detecting sensor every second and transmit signal, LED flashes; User can send command to set the ID of sensor through PC software or serial port. And the trigger only last 20 seconds.
3） Normal mode: Detecting sensor per 5mins and transmit signal, LED flashes.
4） Switching mode: There are 3 modes can be switched by pressing the button. The switching time sequence as the following chart:
a.Sleeping mode will enter trigger mode by pressing the button for 5 seconds;
b.Trigger mode will enter normal mode automatically after 20 seconds;
c.Normal mode will enter trigger mode by pressing the button for 2 seconds;
d.Normal mode will enter sleeping mode by pressing the button for 5 seconds
XZ-TAG4 operation process
XZ-TAG4：with 4G function and local Micro USB to serial port，115200bps,8N1,external 5VDC power
Technical parameters
Software for Monitoring

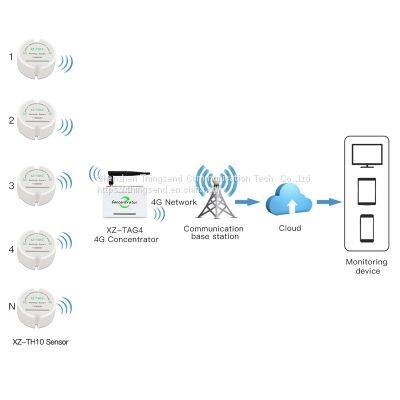

Using the browser to configure the remote IP, port or domain name, local IP or dynamic IP; one can use our company's Galaxy platform software, which can provide CS stand-alone version and BS cloud service version; we can also provide communication protocol and users build their own platforms.
>>
