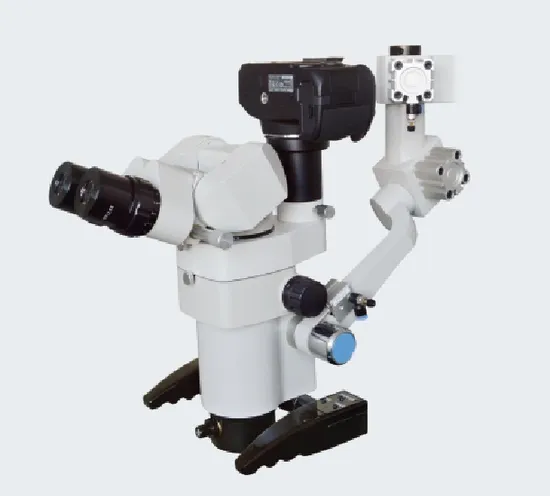

Xt-X-12b-Type Operating Microscope Is Mainly Suitable for Oral and Dental Surgery

Product Description

Product Features
The national unique automatic locking device can ensure accurate positioning. Patent No.: ZL 2014 2 0118886.5
Nationwide unique device for automatically removing mist from the surface of the objective lens. Patent No.: ZL 2014 2 0094157.0
4-20 times non-polar continuous variable magnification optical amplification system.
0°-90° variable angle adjustable binocular lens barrel.
Infineless continuous light brightness adjustment.
Fast switching of two sets of lighting sources.
Technical parameters optical part
Eyepiece 10X wide-angle lens, 0°-90° variable-angle binocular viewing lens
4X-20X continuous variable magnification optical system
Large Zoom Achromatic Objective
1:8 large variable magnification ratio

Interpupillary distance	55mm-75mm continuously adjustable
Diopter adjustment	±6 degrees (binocular)
field of view	8mm-65mm, working distance> 250mm

2.lighting system
Coaxial illumination of cold light source
Dual light source 15V/150W German OSRAM halogen lamp
Power supply voltage and frequency: 220V ± 10% 50Hz
3.Mechanical part
The maximum extension length of the cross arm is 1360mm, and the upper and lower adjustment range is 300mm.
The national unique automatic fog removal device on the surface of the objective lens (patent number: ZL 2014 2 0094157.0)
National unique pneumatic locking device to ensure accurate positioning (patent number ZL 2014 2 0118886.5)
Optional Accessories
1. Splitter
2. CCD camera system
3. Camera system

---
