Product Description
Product Description
Production description

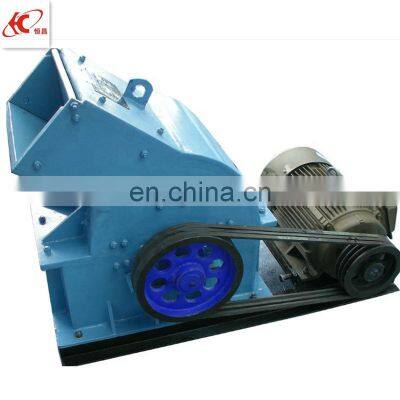

Hammer crusher is suitable for crushing medium and fine crushing of materials with medium hardness, such as limestone, slag, coke, coal, etc.
Hammer crusher mainly depends on impact energy to complete the crushing material operations. Hammer crusher is working, the motor drives the rotor high-speed rotation, the material into the crusher chamber evenly and high-speed rotary hammer impact, cut apart the material to the material being broken, at the same time, the material's own gravity makes material from the high-speed rotating hammer head to the body panel, sieve, resistance is greater than the screen hole size of materials on the sieve plate continues to hit by the hammer and the grinding, crushing to the discharging granularity until the final through the sieve plate
outside.
Advantages of hammer crusher
1. High quality chrome hammer, abrasion resistance achieving the advanced level in country;
2. Specially designing tooth impact plate;
3. Adjustable discharge open;
4. Low power consumption unit;
5. Big crushing ratio
6. Very long operation life
7 Simple structure, reliable operation
8. Easy maintenance, low operation cost
9. Good operating safety, lower energy cost
10. High economic efficiency, low cost, fast recovery
Working principle of hammer crusher
When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size. When the bulk material into the machine, hit by the hammerhead and stopped by material bracket. That's not only increase the contact area between material and hammerhead but also avoid sudden infarction of the rotor. After the impact, bulk materials hit themselves on the crushing cavity. Then the stones overflow from the straight screen or falling and been hammered again forming the stones. At last discharged from outlet of the hammer crusher.
Technical parameters
Model
| Rotor Size
(Diameter×length )
(mm)
| Rotor Speed
(r/min)
| Feeding Size
(mm)
| Output Size(mm)
| Motor power
(KW)
| Capacity(t/h)
| Weight
(kg)
|
PC400×300
| Φ400×300
| 1440
| ≤100
| ≤10
| 7.5
| 5-10
| 900
|
PC600×400
| Φ600×400
| 960
| ≤100
| ≤15
| 18.5
| 10-20
| 1500
|
PC800×600
| Φ800×600
| 970
| ≤120
| ≤15
| 45
| 18-24
| 2680
|
PC1000×800
| Φ1000×800
| 990
| ≤200
| ≤15
| 110
| 30-50
| 5600
|
PC1000×1000
| Φ1000×1000
| 990
| ≤200
| ≤15
| 132
| 30-60
| 8000
|
PC1200×1200
| Φ1200×1200
| 750
| ≤250
| ≤20
| 180
| 90-110
| 19000
|
Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% advanced payment by T/T, balance paid before shipment.
Why Choose Us?
1.We are true Manufacturer.
2.Alibaba Assessed Gold Supplier.
3.Inspected by the Inspection Institution of ISO CE Certification.
4.100% QC inspection Before Shipmeng.
5.Best Quality & Best Service with Competitive price
8.Contact us
If you want to know more details, please contact me!!
