Product Details
Product Description
Product Description
product feature：

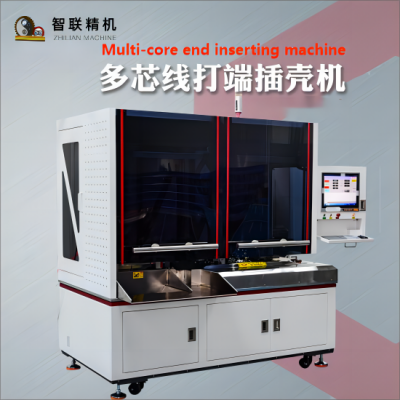

Device Name Model Multi-core wire end inserting machine JL-1806
Main functions multi-core wire peeling, end playing, CCD terminal detection, insert shell
Control Mode Industrial computer control, Windows 7 operating system.
Detection device single-head terminal CCD visual detection, single-head insert case in place CCD visual detection, air pressure detection, terminal detection,
Terminal pressure detection system crown
Fit mold OTP standard horizontal mold
Terminal pressing ability super mute servo terminal machine
Product Parameter：
Power supply 50/60HZ 220V single-phase
Processing length 100-800mm
Wire processing wire range AWG#28-AWG#20, suitable for a variety of specifications
Terminals can be processed from 1.0-3.96mm
Production capacity
Semi-automatic equipment, manual pay-off a single cycle of about 5 seconds, production capacity based on actual measurement
Peel length 1-7mm
Cutting accuracy ± (0.2%*L+1) mm
Air pressure 0.5-0.7Mpa (5-7KG/m³)
Dimensions L:1900mm W:1200mm H:2300mm
Fully automated non-standard equipment can be customized according to customer samples.
>>
