Product Description
Product Description

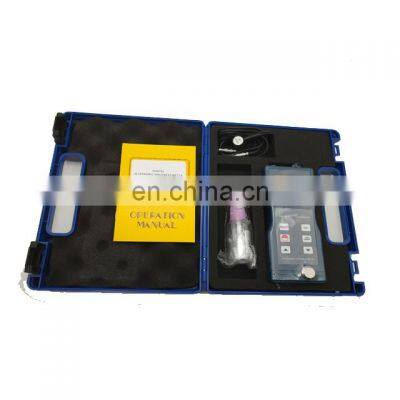

Product DescriptionUsed for measuring thickness and corrosion of pressure vessels, chemical equipment,boilers,oil storage tanks, ect. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Graty cast iron, Nodular cast iron.SpecificationModelTM-8810Measuring range(Metric Imperial)1.2~200 mm 0.06~8 inchOperating principleULTRASONICMaterials measuredOnly 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC , graycast iron , nodular cast ironLower limit steel pipesDiameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducerCalibration blockIncludedResolution0.1 mmAccuracy±(0.5%n+0.1)Power supply4 x1.5 AA (UM-3) BatteryBattery indicatorLow battery indicatorOperating conditions10~90% RHWeight208g(not including battery)Main unit15M Diameter 10 transducer1Instruction manual1Carrying caseB01Features1.With high power of emission and broad band of receiving sensiticity, the gauge can match probes of different frequencies.That makes it easy to measure the rough surface,even cast iron.It is widely used in almost all kinds of industries.2.Automatic memory material code and sound velocity value, convenient to use.3.Coupling symbol indication when measuring.Manual or automatic power off.Company ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Related productsAbout Us1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.
>>
