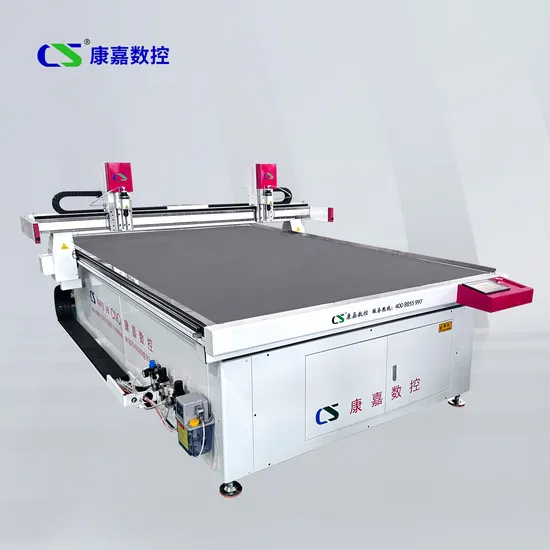

CNC Oscillating Knife Cutting Fabric Automatic Cloth Cutting Machines

Product Description

CNC Oscillating Knife Cutting Fabric Automatic Cloth Cutting Machines Features:
Automatic CNC Oscillating Knife Cutting Fabric Leather PVC Cutter Machines for sale
1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Kangjia digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
Products details:
Parameters:

Model	1625/1630/1830/2030, can be customized.
Working area	1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Oblique knife (V-cut)
	Marking pen
	Punching roller (round punching/v-punching/optional)
	Milling knife
	Drag knife
	Pneumatic knife
	Projector and camera optional
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	110V/220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Advantages of cutting machien: 1. Envioronmental protection, no fire & smoke when cutting.
2. Nice appearance: no raw edge and yellow edge after cutting.
3. High safty factor: mechanical anti-collision device / infrared radiation can assure the worker's safty.
4. High speed cutting: 1500mm / s;
5. High accuracy cutting: error 0.1 max.;
6. performance: stable & durable.
7. Low noise.

Certification:
Company show:
Exhibition:
FAQ:
1. How do I choose the right machine for me? You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
2. Is it easy to operate? Yes, it's very convenient. It supports multiple formats. In addition, our professional technical support personnel. At any time

3. Is the machine safe to operate? Our machines are equipped with multiple protection measures to ensure that the operator's

4. What's the guarantee, in case the machine breaks down? The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality problem under "normal use". .
5. How's the payment? TT,PAYPAL,Western Union(WU),and so on

---
