Pmd Series Heavy Duty Moveable Gantry CNC Drilling Machine

Product Description

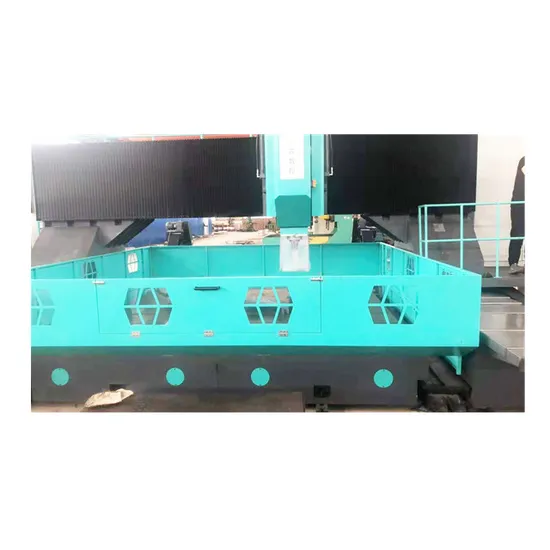

PMD Series Heavy Duty Moveable Gantry CNC Drilling Machine
Product Description
The PMD-series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. Adopting iron casting bed, it It can realize automatic, high precision and many kinds of mass production
PRODUCT STRUCTURE CHARACTERISTICS
1.The machine mainly consists of the bed and the longitudinal slide table,gantry and the horizontal slide table ,the vertical sliding pillow drilling power box ,the work table ,the eletric control system and so on
2.The machine adopts movable gantry and fixed worktable ,save the floor area.
3.The PMD CNC Drilling Machine bed and worktable are independent ,which improves the stability of the equipment and effectively reduces the vibraation generated during high speed drilling .
Product Parameters

Model	PMD-3030	PMD-3030/2	PMD-4040/2	PMD-5050/2
Processing(mm)	3000×3000		4000×4000	5000×5000
Maximum thickness(mm)	300
Number of spindle	1	2	2	2
Spindle model	BT50
Spindle speed(r/min)	10-3000
Feed stroke(mm)	500
Dia.of drilling hole(mm)	φ60
Maximum tapping diameter(mm)	Optional M32
Motor power(KW)	22KW Inverter motor (18.5KW servo motor)

Feature

Machine Application
This machine is suitable for drilling plate ,baffle and flange in the petrochenical ,boiler ,refrigeration,wind power flange and other industries. It can also be used in the of connecting plate in the steel structure such as building ,bridge ,tower and so on

Manufacturing Process
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
Company Profile

Why Choose Raintech SANS?
CERTIFICATE
International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help, please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.

♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.

♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.

---
