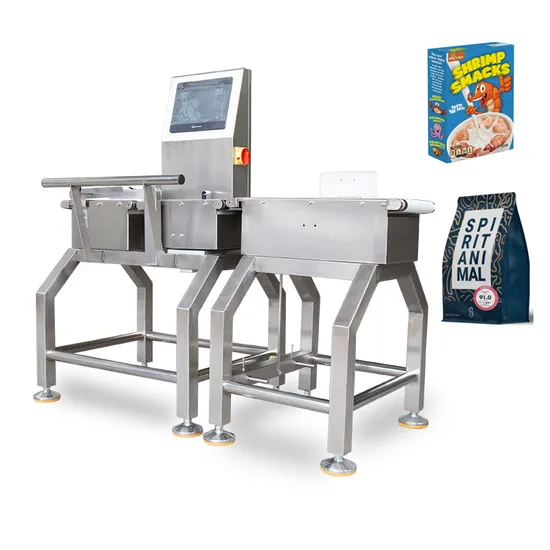

Juzheng Automatic Conveyor Belt Weight Checker Machine Check Weigher with CE

Product Description

Juzheng Automatic Conveyor Belt Weight Checker Machine Check Weigher with CE
Introduction:
The Dynamic Checkweighing System is a method of safe guarding within the food and packaging industries for product weights. The automatic checkweighers are widely used for checking the weight of filled pack in motion, rejecting any products that are over or under the set weight. Thus helps the manufacturer to keep the track of production line, eliminate the complaints from the market and protect the brand reputation.
Juzheng is having the wide range of checkweigher systems. The maximum weighing capacity ranging from 1g to 100Kg for packs such as small hardware or tea bag to shipper cartons. Our engineering team can customized the weighing machine depend on the product weight, pack size and the production capacity. Besides, Juzheng's checkweighers can be used with metal detectors and X-ray inspection machines to enable other attributes of the pack to be checked and acted upon accordingly. WHAT THE SPECIFICATIONS OF MACHINE?

Model#	XR-130mm	XR-220mm	XR-300mm	XR- 400mm	XR- 500mm	XR- 600mm	XR- 700mm	XR- 800mm	XR- 1000mm
Single Weighing Range(g)	≤ 300	≤ 5,000	≤20,000	≤50,000	≤100,000	≤100,000	≤200,000	≤200,000	≤200,0000
Accuracy(g)	±0.07 -±0.3	±0.2 -±5	±0.3 -±15	±0.5 -±20	±1-±20	±1-±30	±5-±50	±5-±100	±5-±200
Max Speed (pcs/min)	120	150	100	60	50	50	40	40	40
Conveyor Speed(m/min)	20-80	30-90	30-90	30-80	25-80	25-80	20-50	15-50	15-25
Conveyor Belt Width(mm)	130	220	300	400	500	600	700	800	1000
Display Resolution(g)	0.01/ 0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Conveyor Direction	(Operator face to the operation panel): from left to right (Can be customized)
Power Supply	AC220V±10%, 50HZ-60HZ
Operation Panel	7'' / 10'' Touchable Screen
Operation Languages	English / Spanish / Vietnamese / Chinese
MS Weighing Scale Module	JZXR-80TL
Load Cell	Standard: ZEMIC Optional: HBM / Mettler Toledo / Siemens
Motor	German JSCC
Inverter	German JSCC
Conveyor belt	White Food-grade PU belt with SGS certificate
Working Environment	0-40 ºC
Material of Construction	SUS 304
Rejector	Air Jet / Pusher / Drop Down / Diverter
Humidity	90%Relative humidity(without condensate)
