Portable Handheld Laser Welding Machine with Raycus 1500W 1000W 2000W 3000W

Product Description

Fiber Laser Welding Machine
1500W 2000W 3000W Hand Held Portable Metal Automatic Fiber Laser Welder
Fiber Laser Welding Machine
Fiber Laser Cleaning Machine
Fiber Laser Cutting Machine
3 in 1 Fiber Laser Welding Machine
1.Standard Specifications Of RL-FLW-2000W

Main Specifications`
Describe	Unit	Parameter
Supply Power	V/Hz	220/50/60Hz
Working time	Hour	24 Hours
Total power	KW	11KW
Weight	KG	300KG
Laser source	Raycus	Raycus 2000W
Cooling method		Water cooling
Indicating method		Red light
Cable length	mm	5000mm (Standard)
Gas		Argon/N2

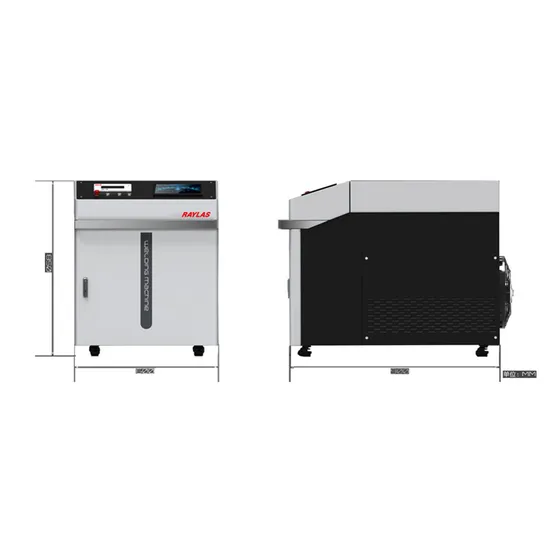

Machine dimensions (L*W*H)	mm	1000MM*650MM*1250MM
Wavelength	nm	1070
Laser power	W	2000W
Through welding ability (One side)	mm	5MM Mildsteel,5MM Stainless

2.Standard Configurations Of RL-FLW-2000W

Main Configurations
Describe	Unit	Brand
Laser Saurce	Set	Raycus China
Water Chiller	Set	Hanli, China
Portable Welding Hand	Set	Raylas, China
Air Condition	Set	Xinliang, China
Control System	Set	Raylas, China
Electronic Components	Set	Schneider, Germany
Gas System	Set	SMC,Japan

3. Technical Parameters:

Laser Mode	Six different modes
Laser Power	1000W	1500W	2000W
Power Adjusting Range	5-95%
Laser Spot Range	0.2mm-5mm
Laser Frequency Range	50-20KHz
Laser welding wobble Frequency	20-200HZ
Fiber Length	5 m
Cooling Method	Water cooling
Power Supply	AC 220V±10% ,50/60Hz

4. Equipment Working Condition

Sub item	Item	Requirements	Notes
Power	Laser Source	6KW	The total installed capacity is not less than 11KW, And this machine need very good ground line.
	Chiller	3KW
	Air Condition	0.3KW
	Other accessories	1KW
	Stability of 3-phase power	380V±5%
	Instability of 3-phase power	<2.5%
	Earthing	<4Ohm
Water	Water for Chiller	Distilled water without minerals	Change every month
Gas	Welding Gas	Ar/N2	The processing parameters
Working	Temperature requirements	5-40 Degree
	Humidity requirements	Less than 70%
	Foundation requirement	There should be no vibration source nearby	If there is a vibration source on site or nearby, the user is required to dig an anti-vibration trench around the foundation
Work piece	For CS and SS: quality surface and no rust

5.Fiber Laser System
No lens built inside laser generator to avoid maintenance
Beam delivery system consists of fibers
Compact-design, easy for integration
Start-up time not needed
Excellent cutting capability
Good beam quality and high-power density
Fiber Laser Conversation Efficiency is more than 30%, compared with YAG or CO2 machine, it significantly saves power consumption when working, saving running costs and to achieve the highest production efficiency.
Fiber laser adopting Semiconductor Modular and Redundancy Design, there is no optical lens in resonant cavity like YAG, it doesn't need any start time, featuring free adjustment, free maintenance, high stability, reducing parts cost and maintenance time, which is incomparable by other traditional cutting machinery.

Operating Model	CW	CW
Wave Length	nm	1070-1080
Standard output power	w	2000
Laser Beam Quality	mm*mrad	4
Adjustable Frequency	Hz	20-20KHZ
Transmission Fiber Diameter	um	50/100
Stability of Output Power		±2
power Supply	VAC	380-460
Power Consumption	KW	6
Working Temperature	ºC	5~35

The machine Optical is Fiber Transmission, it doesn't need complex reflect lens and other light system, the optical path is simple and stable structure, has free maintenance
Laser coupled with optical gate can be a plurality of machine, through the fiber light divided into multiple units at the same time, it's easy to expand function and upgrade. The life time is more than 100,0000 hours.
6.Fiber Laser Welding Head
Switzerland imported laser welding head. Free switching of various light spot modes Quick and Convenient part changing. Built-in dual-axis high-speed servo motor. Digital display design, grasp welding data in real time. Circulating water circuit design, rapid cooling of the gun body. The overall structure of the welding torch is ergonomically designed. Imported high-end chips, multiple security protection measures. All ports on the motherboard can withstand 20W volts of static electricity. The laser cutting head is very easy to operate, the total weight is just 6.3KG. The operator easy to hold and do any metal parts welding.
Quick and Convenient Parts Changing: The laser head belongs to module design product, it is easy to install and disassemble, if you need to change lens or any part, it is very convenient to operate.
Fiber Laser Welding Nozzle Types

7. Water Chiller and Gas Way for Fiber Laser Welding Machine
The laser resonator, laser cutting head and other key components all get sufficient cooling to ensure machine's smooth and safety running. Adopt dual temperature control, which is precise, stable and reliable, able to set and maintain constant temperature The chillers have comprehensive protection functions of over-temperature, phase-loss, over-pressure, water-shortage, low-voltage, overload and so on. Since all the key-components and parts are imported, the chiller has the
advantages of high stability, easy-maintenance and being in
line with the cooling indicator requirement of the laser
source and optical path.

The water pipe and gas pipe interface can be installed with a hose with outer
diameter 6mm inner diameter 4mm. Access and exit pipeline of waterway (regardless
of entry and exit direction)
The cooling system is divided into waterway section of welding head and waterway
section of optical fiber head
8. Fiber Laser Welding Software
Parameter serial number: We can preset about 20 groups of welding parameters according to different materials. Just need to press the up and down button to choose the parameter.
Power: The output power of the laser. The adjustment range is between 10%-100%, and the common welding range is between 50%-100%.
Frequency: Laser output speed. The adjustment range is between 50Hz-20KHz, and the common welding range is between 50-200HZ.The common cutting range is between 1000HZ-5000HZ.
Duty cycle: The ratio of the duration and total time with the laser beams in one cycle. The common welding range is between 40%-80%.

9. Fiber Laser Welding Samples
10. Fiber Laser Welding Machine in Factory
FAQ
1. Do you have the CE certificate and other documents for customs clearance? A: Yes, we have the certificates and documents for exporting.
We will provide you the commercial invoice, packing list, Bill of Lading and other relevant documents for buyers.
2. Payment terms? A: TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness? A: Cutting thickness is related to laser power.
Please tell us what material and thickness do you want to weld by fiber laser welding machine.
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: stainless steel, carbon steel, aluminium, etc.
5. How long is the delivery time?
A: For standard machines, it will be 5-10 days;
For non-standard machines or customized machines according to the client's specific requirements, it will be 15 to 30 days.
6. Can you customize fiber laser welding machine according to our products?
Yes, we can customize fiber laser welding machine according customers' requirements.
If you want to know more, please feel free to contact us, we will reply you asap.

---
