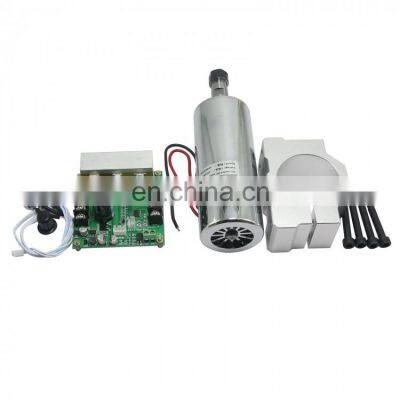

CNC ROUTER MILLING Air Cooled ER11 12-48V 400W Spindle Motor & PWM Speed Controller & Mount Product Description Spindle Motor:- Work voltage: 12-48VDC- Rotation speed: 3000-12000r/min - spindle motor power: 400W- Torque:500mN.m- Insulation resistance:>2Megohm- Dielectric strength:400V- Motor Length : 186mm- Diameter:52mm- Axis collet Length: 48mm- Diameter of Axis collect holder:16mm- Repeat accuracy: 0.01-0.03mm- ER11 spindle motor collect: 3.175mmWide voltage PWM DC brush motor speed controller:- Applies to DC12-60V low voltage permanent magnet brushed DC motor- Operating Voltage: Wide Voltage (DC) DC12V-DC60V (Max 65V)- Control mode A: Default potentiometer control (5K-100K),defaults 10K; B: MACH3 -PWM speed control signal input, external PWM input requirements: level 3.5-12V VPP, frequency 1K-10KHZ, suitable for MACH3 spindle speed control.- Rated current: 10A, overload and short circuit protection current 12A. (Over-current cut output, overcurrent indicator flashes, the potential light is off, overcurrent lift).- Soft-start function. Prevent excessive current caused by the motor and power damage (default 0 seconds soft start), 0-5 seconds adjustable.6.Control power: 12V120W, 24V240W, 36V360W, 48V480W, 60V600W7.Dimensions: Length 75mm * Width 75mm * high 42mm 8.Pulse width modulation range: 0% -100% Note: When using a PWM signal control mode, need to unplug Potentiometer, or it will be unable to use PWM mode). Package Content:- 1 * 0.4KW spindle motor with with ER11 3.175 collet- 1 * Mach3 PWM speed controller- 1 * Mount bracket with screws Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Packing&ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
