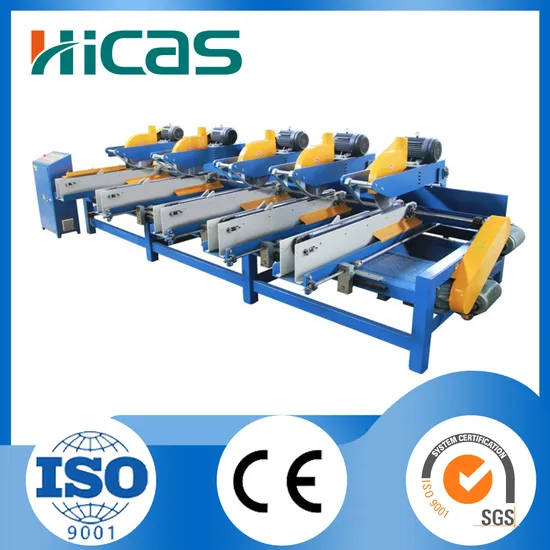

Sf8005 Wood Multi Head Trim Saw Machine

Product Description

Sf8005 Wood Multi Head Trim Saw Machine Product Description
Manual feeding wood, each head distance is adjustable manually with hand crank, each head can lift alone (when you no need to use it can lift it), high speed multi head cross cut saw machine.
Features 5 diameter circular saws, set at either equal or various distances from each other, depending on the application at hand. Each saw head can easily be positioned independently using a lockable saw head positioner. As boards are fed in laterally, these saws cut them individually into shorter pieces all at once.
Working video link: https://youtu.be/KFh5aes4Cjw
Features 5 circular saws, set at either equal or various distances from each other, depending on the application at hand. Each saw head can easily be positioned independently using a lockable saw head positioner. As boards are fed in laterally, these saws cut them individually into shorter pieces all at once.
Functions, 2-8 sawing heads, 1st head is fixed, other heads are movable. Frequency control working speed, adjust in the control panel One operator required to operate the machine Heavy-duty steel construction 450*30mm diameter, 120 teeth circular saw blades Each saw is powered by a 5.5kw electric motor 24pc Chain conveyor dogs draw material evenly into saw to be cut Material can be up to 120mm thick, as short as 500mm long, and up to max. 6000mm length 430mm wide belt conveyor collects and discharges waste and end block material 430mm wide belt conveyor discharges product to either the left or right of machine can decide from the control panel Completely tested before delivery, can share testing video with you.

Model	SF8005
Sawing head quantity	5pc
Feeding length	500-5000mm First saw blade used for head trimming Its movable and max. head trimming length 100mm Distance between first saw blade and last saw blade is max. 5000mm
Min. Distance between saw blade	450mm
Cutting thickness	Max. 120mm (for 1 piece wood) Max. 60mm (for multi pieces wood)
Feeding block height	60mm
Cutting width	0-300mm
Feeding speed	Max. 6m/min Frequency control
Out-feeding speed	Max. 60m/min Frequency control
Cutting accuracy	±1mm
Saw kerf	4mm
Saw blade diameter	450mm*30mm*120T
Sawing head quantity	5pc
Sawing motor	5pc*5.5kw=27.5kw
Chain feeding motor	1pc*1.5kw=1.5kw
Conveyor motor	1pc*1.5kw=1.5kw
Total power	30.5kw
Voltage	380v 50Hz 3 phase
Dust collection port	5pc*100mm
Machine space	6770*6880*1970mm
Packing size	6450*2350*1730mm 4900*1200*1880mm 4900*2250*1230mm
Weight	8800kg

Detailed Photos
Comparison with Peers
Related Products

SF6060	Automatic Cross Cut Saw	View More>>
SF6021	Double Ends Trim Saw	View More>>
SF6060S+	Cross Cut Saw & Length Sorting & Stacker	View More>>
SF8005	Multi-head Trim Saw	View More>>
SF7030	Wood Pallet Chamfer	View More>>
SF7013	Double Heads Notcher	View More>>
SF7011	Single Head Notcher	View More>>
SF7041	Pallet Corner Rounder	View More>>

Production Process
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China.
We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2011 with manufacturing centers in Qingdao, covering about 20,000+ square meter.
1.Founded in 2011.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer visits & feedbacks & exhibitions
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our After Sale Service & Packaging & Shipping
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 200 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like wood pallet machine, edge banding machine, sanding machine, drilling machine, saw machine, roller coater, spray painting machine, nailless plywood box machine, pallet collar machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.

---
