| US$50,000.00-55,000.00 | 1 Piece (MOQ) |

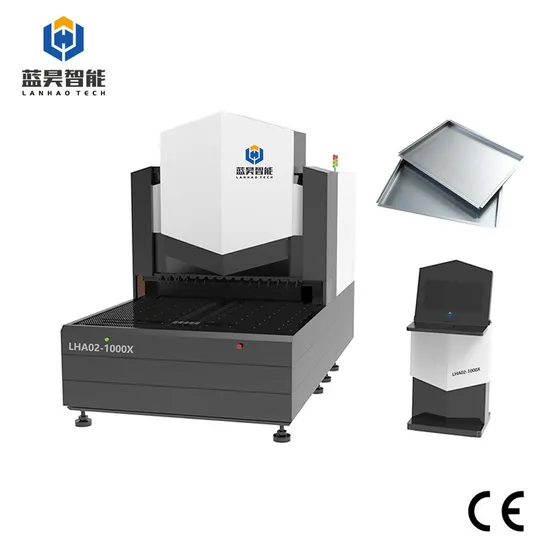

| LHA-1000X-02 Technical parameters | |
| Loading method | Suction cup |
| Worktable structure | Brush |
| Max. bending speed | 0.2 second/time |
| Max.bending width | 1000mm |
| Max.Bending size | L1000mm W1000mm |
| Max. Bending height | 170mm |
| Rated voltage | 380V |
| Total power | 25KW |
| Average power | About 1.1KW |
| Noise decibels | About 50 db |
| Machine size | L285cm W150cm H280cm |
| Total weight | 7 tons |
| User operating environment | Win7 or above operating system |
| Max. Bending width | UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold plate 1.2mm UTS 265N/mm2 aluminium plate 1.6mm |
| Min. Panel thickness | 0.35mm |
| Four sides forming, min. Inner size | 140mmx210mm |
| Double sides forming, min. Inner size | 140mm |
| Axis | Standard synchronized 9 axis |
